Airline 64WG-2007A
Montgomery Ward & Co. (Wards, Airline); Chicago, IL
- Country
- United States of America (USA)
- Manufacturer / Brand
- Montgomery Ward & Co. (Wards, Airline); Chicago, IL
- Year
- 1946 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 138186
-
- Brand: Airline or Air-Line
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Details
- Record Player (not changer)
- Power type and voltage
- Alternating Current supply (AC) / 105 - 120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4.75 inch = 12.1 cm
- Material
- Wooden case
- from Radiomuseum.org
- Model: Airline 64WG-2007A - Montgomery Ward & Co. Wards,
- Shape
- Tablemodel, with any shape - general.
- Notes
- Trade name = Airline. Sams photofact folder 465-6 date 10-46 features the Airline models 64WG-2007A and 64WG-2007B as the same schematic.
- Literature/Schematics (1)

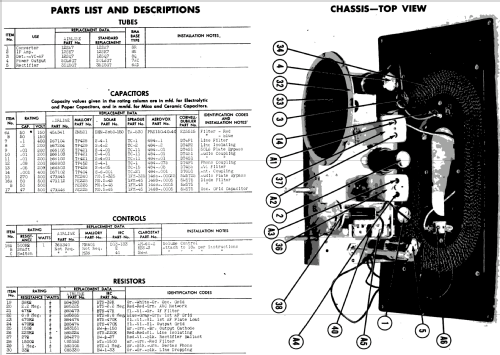

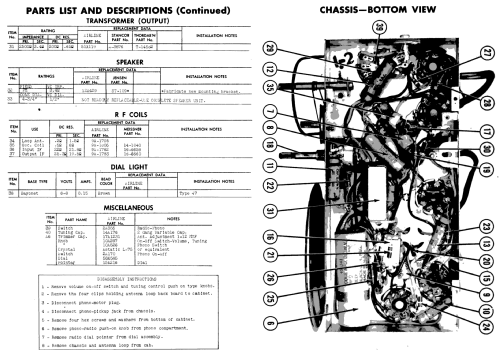

- Photofact Folder, Howard W. SAMS (Folder 465-6 date 10-46)
- Author
- Model page created by Peter Hoddow. See "Data change" for further contributors.
