• Country
• United States of America (USA)

• Manufacturer / Brand
• Montgomery Ward & Co. (Wards, Airline); Chicago, IL

• Year
• 1963 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 141324

• • Brand: Airline or Air-Line

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 6

• Semiconductors
• 2SA103 2SA101 2SA100 2SB170 2SB172 2SB172 MA80

• Main principle
• Superheterodyne (common); 2 AF stage(s)

• Tuned circuits
• 5 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Dry Batteries / 9 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

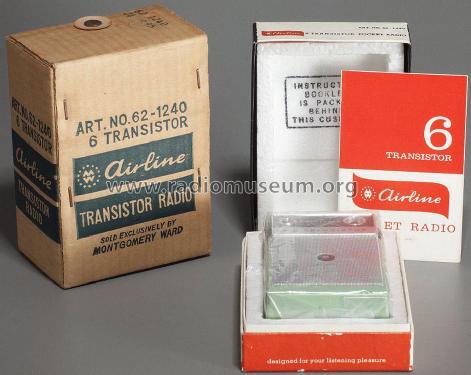

• Model: Airline 6 Transistor GEN-1240A Art. No. 62-1240 - Montgomery Ward & Co. Wards,

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Notes

• Airline 6 Transistor GEN 1240A, Art. No. 62-1240;
  Earphones jack.

  Made in Japan for Montgomery Ward, Chicago, Illinois.

• Literature/Schematics (2)
• Photofact TSM Transistor Radio Series SAMS (1964)

• Literature/Schematics (3)
• -- Schematic

• Author
• Model page created by a member from A. See "Data change" for further contributors.
