• Year
  • 1948
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 231112
    • Brand: Airline or Air-Line

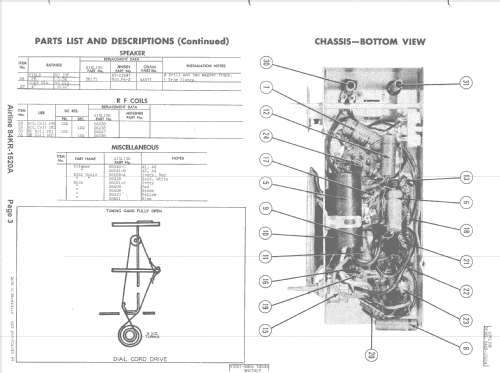

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 4
  • Main principle
  • TRF without regeneration
  • Tuned circuits
  • 4 AM circuit(s)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • AC/DC-set / 105-125 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
  • Power out
  • 1.6 W (unknown quality)
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Airline 84KR-1520A [red] - Montgomery Ward & Co. Wards,
  • Shape
  • Tablemodel without push buttons, Mantel/Midget/Compact up to 14
  • Dimensions (WHD)
  • 8 x 6 x 4 inch / 203 x 152 x 102 mm
  • Notes
  • Using 4 core tuned circuits.

    Colours and material:
    Painted metal

    Stein lists:
    - model 1520: ivory
    - model 1521: red
    - model 1524: blue

    but in Sams and in Riders the 84KR-1520A is listed in 5 different colors:
    - ivory
    - red
    - yellow
    - green
    - blue

  • External source of data
  • Ernst Erb
