• Country
• United States of America (USA)

• Manufacturer / Brand
• Montgomery Ward & Co. (Wards, Airline); Chicago, IL

• Year
• 1957 ?

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 312039

• • Brand: Airline or Air-Line

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 16

• Valves / Tubes
• 2AF4A 4BQ7A 5AT8 3CB6 3CB6 5AN8 12BY7A 5AN8 3BN6 5AQ5 6CM7 6CG7 25CD6G 19AU4 1B3GT 21ALP4B

• Main principle
• Superhet with RF-stage

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm

• Material
• Wooden case

• from Radiomuseum.org
• Model: Airline BR-4124A - Montgomery Ward & Co. Wards,

• Shape
• Tablemodel, with any shape - general.

• Notes

• Airline model BR-4124A is a 24" b/w TV with US standard VHF tuner channels 2 thru 13, and 14 thru 83 UHF. Equipped with a VHF-UHF tuner  and picture tube 21ALP4B.



• Literature/Schematics (1)

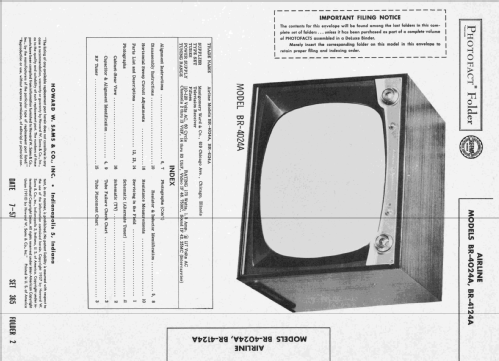

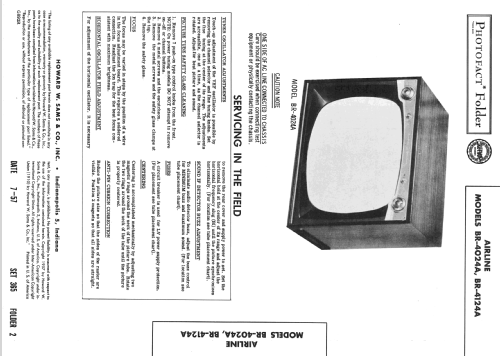

• Photofact Folder, Howard W. SAMS (Set 365 Folder 2 dated 7-57)

• Author
• Model page created by Dirk Taekels. See "Data change" for further contributors.
