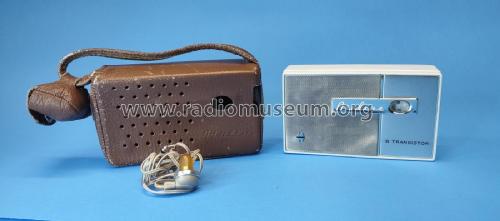

Airline 6 Transistor GEN 1202A
Montgomery Ward & Co. (Wards, Airline); Chicago, IL
- Country
- United States of America (USA)
- Manufacturer / Brand
- Montgomery Ward & Co. (Wards, Airline); Chicago, IL
- Year
- 1960
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 141325
-
- Brand: Airline or Air-Line
- Number of Transistors
- 6
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 5 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Batteries / addl. power jack / 1 x 9 / 9 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 2.25 inch = 5.7 cm
- Power out
- 0.05 W (undistorted)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Airline 6 Transistor GEN 1202A - Montgomery Ward & Co. Wards,
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Dimensions (WHD)
- 4.5 x 2.5 x 1.375 inch / 114 x 64 x 35 mm
- Notes
-
The Airline GEN-1202A has an optional external power jack (9VDC center pin negative). External power jack is inside the 0.100 inch diameter hole, next to the earphone jack on the left side of the radio.
Made in Japan
- Net weight (2.2 lb = 1 kg)
- 0.64 lb (0 lb 10.2 oz) / 0.291 kg
- Price in first year of sale
- 23.75 USD
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Set 571, Folder 4, May 1962)
- Literature/Schematics (2)
- Montgomery Ward Catalogs (Wards, Airline) (1960 Christmas Catalog, page 452)
- Literature/Schematics (3)
- Collector's Guide To TrR1 Bunis trans.94 (1996, page 27)
- Author
- Model page created by a member from A. See "Data change" for further contributors.
