Airline GRX- 4030A
Montgomery Ward & Co. (Wards, Airline); Chicago, IL
- Country
- United States of America (USA)
- Manufacturer / Brand
- Montgomery Ward & Co. (Wards, Airline); Chicago, IL
- Year
- 1957 ?
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 317234
-
- Brand: Airline or Air-Line

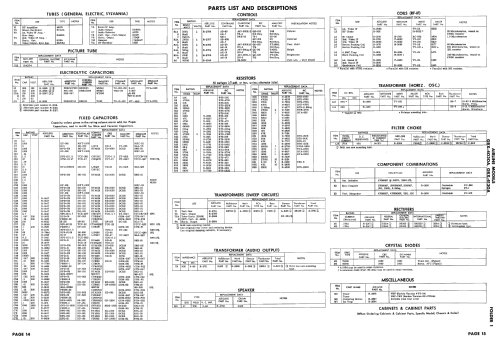

Picture from service manual.
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 12
- Main principle
- Superhet with RF-stage
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
- Material
- Metal case
- from Radiomuseum.org
- Model: Airline GRX- 4030A - Montgomery Ward & Co. Wards,
- Shape
- Tablemodel, with any shape - general.
- Notes
-
Airline model GRX-4030A is a 10" b/w TV with US standard VHF tuner channels 2 thru 13. Equipped with VHF tuner TT-34 and picture tube 10ADP4.
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Set 379 Folder 1 dated 11-57)
- Author
- Model page created by Dirk Taekels. See "Data change" for further contributors.
