• Country
• United States of America (USA)

• Manufacturer / Brand
• Montgomery Ward & Co. (Wards, Airline); Chicago, IL

• Year
• 1957 ?

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 318698

• • Brand: Airline or Air-Line

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 15

• Valves / Tubes
• 3BC5 5J6 5AV8 3BN6 12L6GT 3CB6 3CB6 5AV8 6AW8 12BH7A 6SN7GTB 12CU6 12AX4GTA 1X2B 17AVP4 or 21ATP4 or 24DP4A

• Main principle
• Superhet with RF-stage

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• from Radiomuseum.org
• Model: Airline GSE-4006B - Montgomery Ward & Co. Wards,

• Notes

• Airline model GSE-4006B is a 17or 21 or 24" b/w TV with US standard VHF tuner channels 2 thru 13. Equipped with a VHF tuner and picture tube 17AVP4 or 21ATP4 or 24DP4A.



• Literature/Schematics (1)

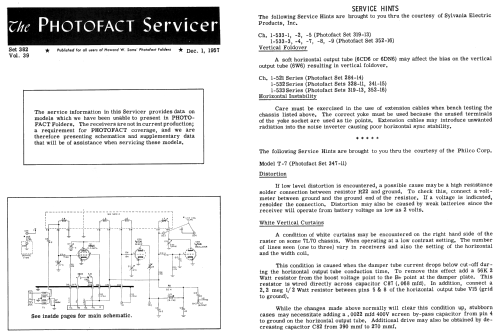

• Photofact Folder, Howard W. SAMS (Set 382 Photofact servicer Set 382 Vol.39 dated 12-57)

• Author
• Model page created by Dirk Taekels. See "Data change" for further contributors.
