Airline GSE-5013A
Montgomery Ward & Co. (Wards, Airline); Chicago, IL
- Country
- United States of America (USA)
- Manufacturer / Brand
- Montgomery Ward & Co. (Wards, Airline); Chicago, IL
- Year
- 1956 ?
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 297501
-
- Brand: Airline or Air-Line

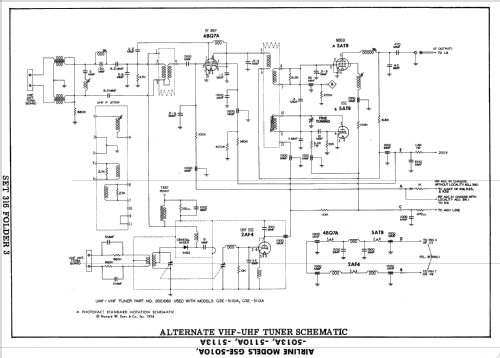

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 16
- Valves / Tubes
- 3BC5 5AT8 3CB6 3CB6 3CB6 12BY7A 5U8 3BN6 12L6GT 6SN7GTB 12BH7A 6SN7GTB 12CU6 12AX4GTA 1X2B 21ALP4A
- Main principle
- Superhet with RF-stage
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Alternating Current supply (AC) / 60 cycles, 117V = 110 -120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 inch = 20.3 cm
- Material
- Wooden case
- from Radiomuseum.org
- Model: Airline GSE-5013A - Montgomery Ward & Co. Wards,
- Shape
- Console, Lowboy (legs < 50 %).
- Notes
-
THE AIRLINE model GSE-5013A is a 21" b/w TV with US standard VHF Tuner channels 2 thru 13, equipped with VHF-tuner 20E1040 and picture tube 21ALP4A.
- Literature/Schematics (1)

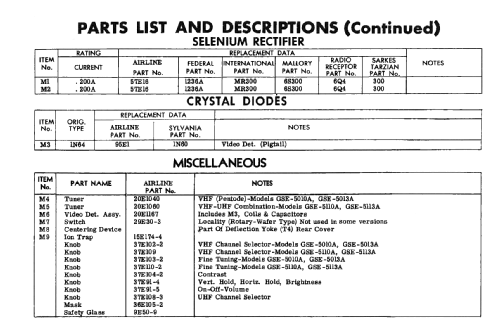

- Photofact Folder, Howard W. SAMS (Set 316 Folder 3 Dated 5-56)
- Author
- Model page created by Dirk Taekels. See "Data change" for further contributors.
