• Country
• United States of America (USA)

• Manufacturer / Brand
• Montgomery Ward & Co. (Wards, Airline); Chicago, IL

• Year
• 1956 ?

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 334554

• • Brand: Airline or Air-Line

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 20

• Valves / Tubes
• 6AF4A 6BZ7 6U8 6CB6 6CB6 6CB6 6AH6 6AU6 6T8 6W6GT 6AU6 6SN7GTA 6S4 6AL5 6SN7GTA 6BQ6GT 6W4GT 1B3GT 5U4G 21YP4A

• Main principle
• Superhet with RF-stage

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm

• Material
• Wooden case

• from Radiomuseum.org
• Model: Airline GSL-4102B - Montgomery Ward & Co. Wards,

• Shape
• Tablemodel, with any shape - general.

• Notes

• Airline model GSL-4102B is a 21” b/w TV with US standard VHF tuner channels 2 thru

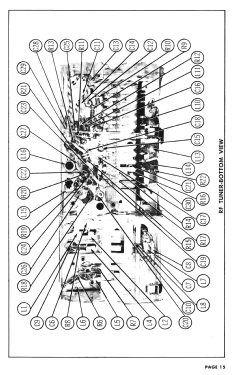

  13, and 14 thru 83 UHF. Equipped with VHF- UHF- tuner TV5519 and picture tube 21YP4A.



• Literature/Schematics (1)

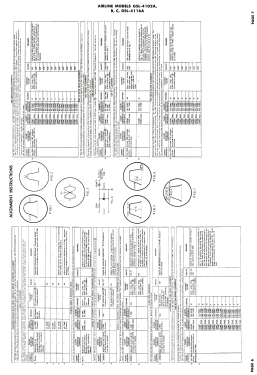

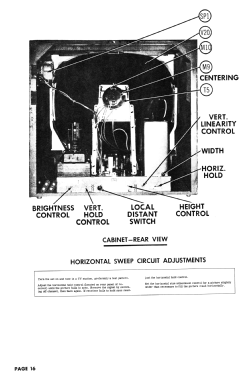

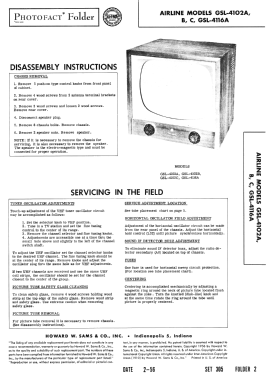

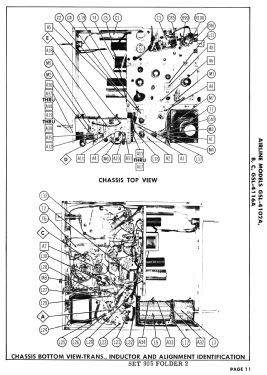

• Photofact Folder, Howard W. SAMS (Set 305 Folder 2 dated 2-56)

• Author
• Model page created by Dirk Taekels. See "Data change" for further contributors.
