Airline GTM-1638A
Montgomery Ward & Co. (Wards, Airline); Chicago, IL
- Country
- United States of America (USA)
- Manufacturer / Brand
- Montgomery Ward & Co. (Wards, Airline); Chicago, IL
- Year
- 1958/1959
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 144785
-
- Brand: Airline or Air-Line
Sams Photofact Folders
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- AC/DC-set / 105 - 120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Airline GTM-1638A - Montgomery Ward & Co. Wards,
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 16 x 9 x 8 inch / 406 x 229 x 203 mm
- Notes
- 2" x 10" PM elliptical speaker.
The Montgomery Model Airline GTM-1638A is an AC/DC Operated 6 Tube AM Heterodyne Receiver.
- Price in first year of sale
- 29.95 $
- Literature/Schematics (1)

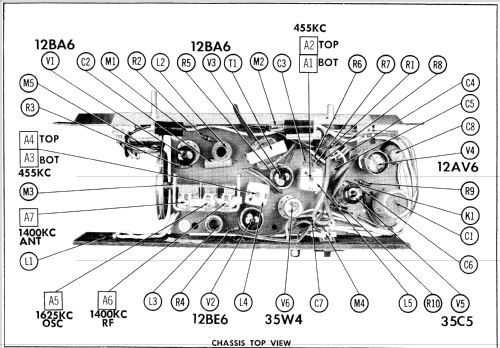

- Photofact Folder, Howard W. SAMS (Date 9-58, Set 411, Folder 5)
- Literature/Schematics (2)

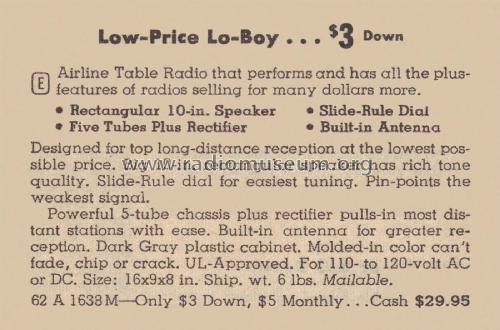

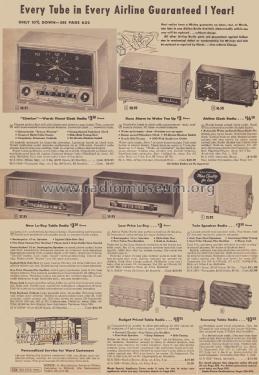

- Montgomery Ward Catalogs (Wards, Airline) (Spring/Summer 1958, page 524. Fall/Winter 1958/59, page 781.)
- Author
- Model page created by Egon Penker. See "Data change" for further contributors.
