• Country
• United States of America (USA)

• Manufacturer / Brand
• Montgomery Ward & Co. (Wards, Airline); Chicago, IL

• Year
• 1957 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 316124

• • Brand: Airline or Air-Line

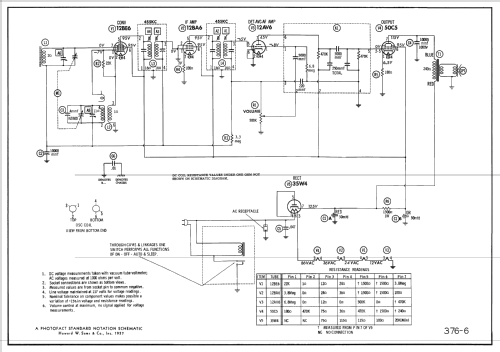

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 12BE6 12BA6 12AV6 50C5 35W4

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 3.5 inch = 8.9 cm

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Airline GTM-1653A - Montgomery Ward & Co. Wards,

• Shape
• Tablemodel with Clock ((Alarm-) Clock Radio).

• Notes

• Airline model GTM-1653A is a AC operated AM receiver with electric clock.

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Set 376 Folder 6 dated 11-57)

• Author
• Model page created by Dirk Taekels. See "Data change" for further contributors.

• Other Models

• Here you find 2290 models, 1459 with images and 1786 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Montgomery Ward & Co. (Wards, Airline); Chicago, IL
