• Country
• United States of America (USA)

• Manufacturer / Brand
• Montgomery Ward & Co. (Wards, Airline); Chicago, IL

• Year
• 1940/1941

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 238438

• • Brand: Airline or Air-Line

• Number of Tubes
• 6

• Valves / Tubes

• Main principle
• Superhet with RF-stage; ZF/IF 456 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Line (AC, UC or DC not known) / 50-60 cycles, 105-125 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 5 inch = 12.7 cm

• Material
• Bakelite case

• from Radiomuseum.org
• Model: Airline P462C-610 Order= P462 B 610 - Montgomery Ward & Co. Wards,

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 13.125 x 8.25 x 6.875 inch / 333 x 210 x 175 mm

• Notes

• Brown plastic cabinet. Same Model in ivory: Model 14WG-611B.

• Price in first year of sale
• 13.95 $

• Mentioned in
• Machine Age to Jet Age II (page 60.)

• Literature/Schematics (4)

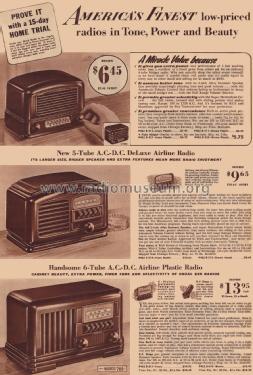

• Montgomery Ward Catalogs (Wards, Airline) (Fall/Winter 1940/41, No. 133, page 703. Spring/Summer 1941, page 698.)

• Author
• Model page created by Noemi Erb. See "Data change" for further contributors.

• Other Models

• Here you find 2292 models, 1460 with images and 1788 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
