• Country
• United States of America (USA)

• Manufacturer / Brand
• Montgomery Ward & Co. (Wards, Airline); Chicago, IL

• Year
• 1926 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 189798

• • Brand: Airline or Air-Line

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes

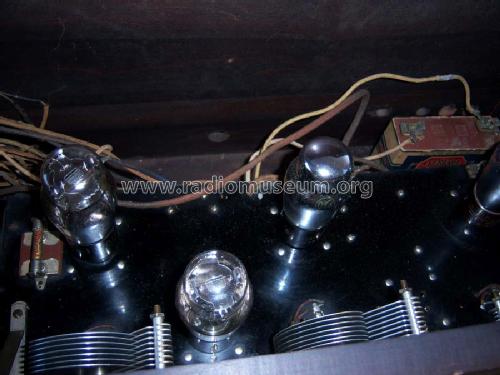

• GX201A GX201A GX201A GX201A GX201A

• Main principle
• TRF without regeneration

• Tuned circuits
• 3 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Storage and/or dry batteries / 90 & 45 & 6 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Wooden case

• from Radiomuseum.org
• Model: Airline U-15 - Montgomery Ward & Co. Wards,

• Shape

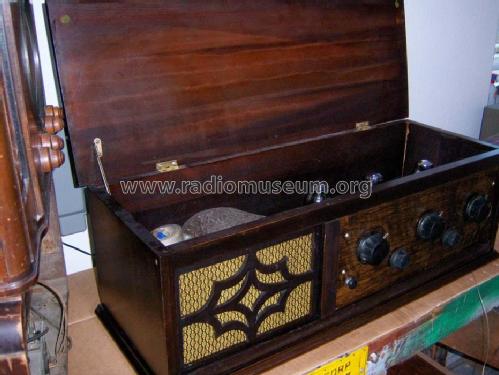

• Tablemodel, Box - most often with Lid (NOT slant panel).

• Dimensions (WHD)
• 30 x 11 x 11 inch / 762 x 279 x 279 mm

• Net weight (2.2 lb = 1 kg)
• 15 lb (15 lb 0 oz) / 6.810 kg

• Author
• Model page created by Richard Adams. See "Data change" for further contributors.
