Airline WG-5035C

• Country
• United States of America (USA)

• Manufacturer / Brand
• Montgomery Ward & Co. (Wards, Airline); Chicago, IL

• Year
• 1957 ?

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 271412

• • Brand: Airline or Air-Line

• Picture
• Schematics

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 20

• Valves / Tubes
• 6BQ7A 6AT8 6BZ7 6U8 6CB6 6CB6 6CB6 6U8 12BY7 6AU6 6U8 6BN6 6AQ5 6W6GT 6SN7GTB 6DQ6 6AX4GT 1B3GT 5U4GB 21ATP4

• Main principle
• Superhet with RF-stage

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Power type and voltage
• Alternating Current supply (AC) / 60 Hz, 117 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• from Radiomuseum.org
• Model: Airline WG-5035C - Montgomery Ward & Co. Wards,

• Notes

• The Airline WG-5035C is a 21" b/w TV with US standard VHF Tuner channels 2 thru 13. Uses picture tube 21ATP4.

• Mentioned in

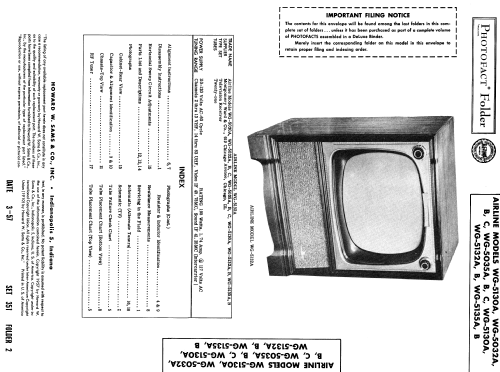

• Photofact Folder, Howard W. SAMS (Set 351, Folder 2, Date 3-57)

• Author
• Model page created by Arpad Roth † 27.3.17. See "Data change" for further contributors.
