• Country
• United States of America (USA)

• Manufacturer / Brand
• Montgomery Ward & Co. (Wards, Airline); Chicago, IL

• Year
• 1965

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 74057

• • Brand: Airline or Air-Line

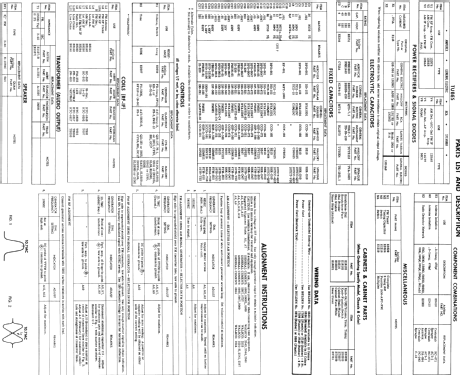

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 12DT8 12BE6 12BA6 12BA6 14GT8 50C5

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• AC/DC-set / 115 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6.5 inch = 16.5 cm

• Material
• Wooden case

• from Radiomuseum.org
• Model: GEN1816A - Montgomery Ward & Co. Wards,

• Shape
• Tablemodel, with any shape - general.

• Notes
• Uses 1 Silicon Rectifier and 1 Germanium Diode.
  Can receive stereo with GEN1816AA FM Stereo Companion.
  FM IF-Freq: 10.7 MHz

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS

• Author
• Model page created by Steven Sostrom. See "Data change" for further contributors.
