• Country
• United States of America (USA)

• Manufacturer / Brand
• Montgomery Ward & Co. (Wards, Airline); Chicago, IL

• Year
• 1966

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 93913

• • Brand: Airline or Air-Line

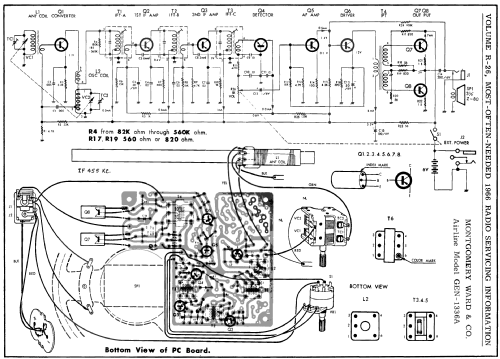

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 8

• Semiconductors
• 2SA15 2SA12 2SA12 2SA12 2SB75 2SB75 unknown_tr unknown_tr

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 3 AF stage(s)

• Tuned circuits
• 5 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Batteries / addl. power jack / C: 4 x 1.5V / 6 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 3.5 inch = 8.9 cm

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

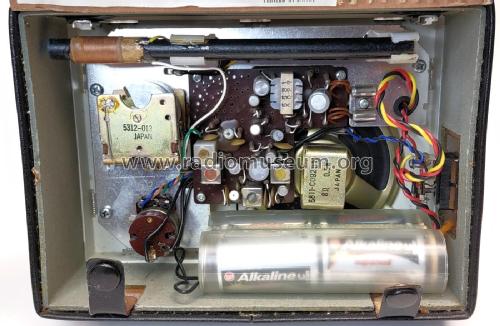

• Model: Airline GEN-1336A - Montgomery Ward & Co. Wards,

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 8 x 5.75 x 3 inch / 203 x 146 x 76 mm

• Notes

• Made in Japan 705

• Net weight (2.2 lb = 1 kg)
• 2.6 lb (2 lb 9.6 oz) / 1.180 kg

• Price in first year of sale
• 18.50 USD

• Circuit diagram reference
• Beitman Radio Diagrams Vol. 26, 1966

• Literature/Schematics (1)
• 1966 Montgomery Ward Fall Winter Catalog, page 1207

• Literature/Schematics (2)
• Photofact TSM Transistor Radio Series SAMS (TSM-69, April 1966)

• Author
• Model page created by Egon Penker. See "Data change" for further contributors.
