- Country
- United States of America (USA)
- Manufacturer / Brand
- Montgomery Ward & Co. (Wards, Airline); Chicago, IL
- Year
- 1959
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 85445
-
- Brand: Airline or Air-Line
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- AC/DC-set / 117 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: GEN-1668A - Montgomery Ward & Co. Wards,
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 10.5 x 8.25 x 3.75 inch / 267 x 210 x 95 mm
- Notes
-
6x4 inch eliptical speaker. Maroon and white plastic cabinet.
Same model in coral and white: Model Airline GEN-1667A.
- Price in first year of sale
- 23.95 $

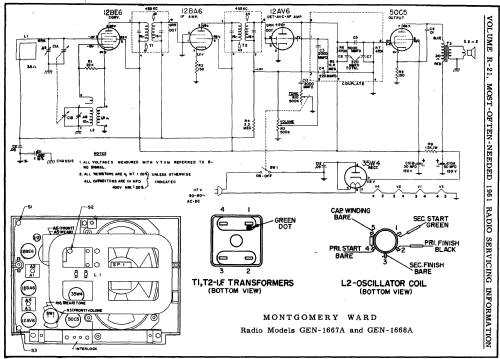

- Circuit diagram reference
- Beitman Radio Diagrams Vol. 21, 1961
- Mentioned in
- Montgomery Ward Catalogs (Wards, Airline) (Fall/Winter 1959, page 802.)
- Author
- Model page created by Egon Penker. See "Data change" for further contributors.
