• Country
• United States of America (USA)

• Manufacturer / Brand
• Montgomery Ward & Co. (Wards, Airline); Chicago, IL

• Year
• 1959

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 144325

• • Brand: Airline or Air-Line

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 1T4 1R5 1U4 1U5 3V4

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Line / Batteries (any type) / 110 - 120 AC/DC; 90 & 9 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: GTM-1117A - Montgomery Ward & Co. Wards,

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 10.375 x 9.25 x 3.5 inch / 264 x 235 x 89 mm

• Notes
• Three power portable AM receiver.

• Price in first year of sale
• 36.95 $

• Literature/Schematics (1)

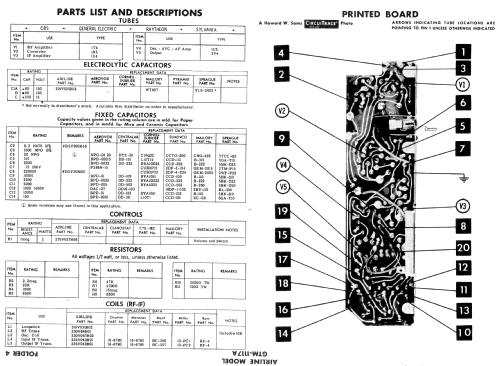

• Photofact Folder, Howard W. SAMS (Set 473 folder 4 date 2-60)

• Literature/Schematics (2)
• Montgomery Ward Catalogs (Wards, Airline) (Spring/Summer 1959, page 626.)

• Author
• Model page created by Peter Hoddow. See "Data change" for further contributors.
