Airline 93BR-714B Series A
Montgomery Ward & Co. (Wards, Airline); Chicago, IL
- Country
- United States of America (USA)
- Manufacturer / Brand
- Montgomery Ward & Co. (Wards, Airline); Chicago, IL
- Year
- 1939
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 48492
-
- Brand: Airline or Air-Line

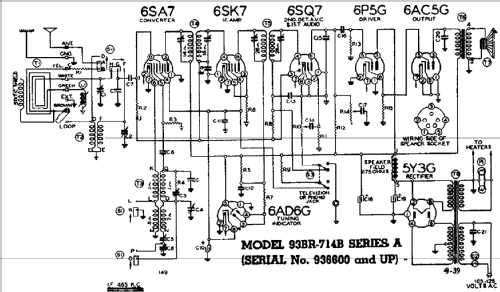

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 7
- Main principle
- Superheterodyne (common); ZF/IF 465 kHz; 3 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast and Short Wave (SW).
- Power type and voltage
- Alternating Current supply (AC) / 105-125 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 8 inch = 20.3 cm
- Power out
- 2.5 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Airline 93BR-714B Series A - Montgomery Ward & Co. Wards,
- Shape
- Console with Push Buttons.
- Notes
- 6 station pushbuttons. Tuning eye.
- External source of data
- Ernst Erb
- Source of data
- Pre-War Consoles
- Circuit diagram reference

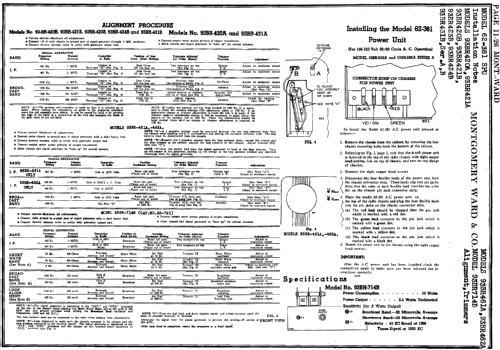

- Rider's Perpetual, Volume 11 = ca. 1940 and before
- Mentioned in
- Rider's 11-19, 11-26, 11-39
