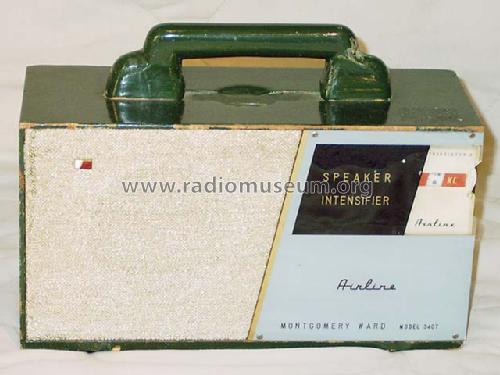

Speaker Intensifier GEN 3407A (GEN3407A)
Montgomery Ward & Co. (Wards, Airline); Chicago, IL
- Country
- United States of America (USA)
- Manufacturer / Brand
- Montgomery Ward & Co. (Wards, Airline); Chicago, IL
- Year
- 1967 ?
- Category
- Loudspeaker, headphone or earphone
- Radiomuseum.org ID
- 205632
-
- Brand: Airline or Air-Line
- Wave bands
- - without
- Power type and voltage
- Dry Batteries / 6 × 1,5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch
- Power out
- 1.2 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Speaker Intensifier GEN 3407A - Montgomery Ward & Co. Wards,
- Shape
- Tablemodel without push buttons, Mantel/Midget/Compact up to 14
- Dimensions (WHD)
- 11.5 x 6.25 x 4.5 inch / 292 x 159 x 114 mm
- Notes
- Kind of "Docking Station" for pocket radio. Holds a larger speaker and 6 D-cells to achieve better sound and to save the radio batteries.
Insert a pocket transistor radio in the right-hand side. It will connect a speaker and 6 D cell batteries contained in the unit. Looks like a larger portable radio. It is designed to be used with the Montgomery Ward Airline GEN1131.
- Author
- Model page created by Steven Sostrom. See "Data change" for further contributors.
