• Country
• United States of America (USA)

• Manufacturer / Brand
• Montgomery Ward & Co. (Wards, Airline); Chicago, IL

• Year
• 1924

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 207230

• • Brand: Airline or Air-Line

• Number of Tubes
• 5

• Valves / Tubes
• UV201A UV201A UV201A UV201A UV201A

• Main principle
• TRF without regeneration; 2 AF stage(s)

• Tuned circuits
• 3 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Storage and/or dry batteries

• Loudspeaker
• Horn

• Material
• Wooden case

• from Radiomuseum.org

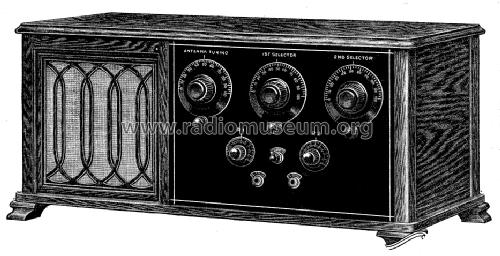

• Model: Super Airline 5-Tube Set with Speaker [Storage Battery Set] - Montgomery Ward & Co. Wards,

• Shape
• Tablemodel, Box - most often with Lid (NOT slant panel).

• Dimensions (WHD)
• 28 x 12 x 12 inch / 711 x 305 x 305 mm

• Notes
• The Montgomery Ward Super Airline 5-Tube Receiving Set mounted in desk top cabinet with built-in loud speaker. This set featured Two-Stages of Radio Frequency Amplification, Detector and Two-Stages of Audio Amplification.

• Net weight (2.2 lb = 1 kg)
• 60 lb 0 oz (60 lb) / 27.240 kg

• Price in first year of sale
• 136.00 $

• Literature/Schematics (1)
• 1924 Montgomery Ward Radio catalog page 17

• Author
• Model page created by Alan Larsen. See "Data change" for further contributors.
