• Country
• Soviet Union

• Manufacturer / Brand
• 1st Moskovsky Priborostroitelny Zavod

• Year
• 1988

• Category

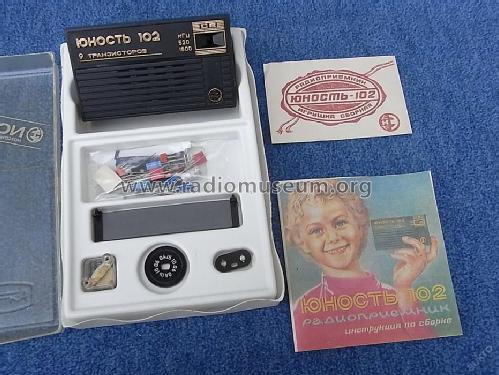

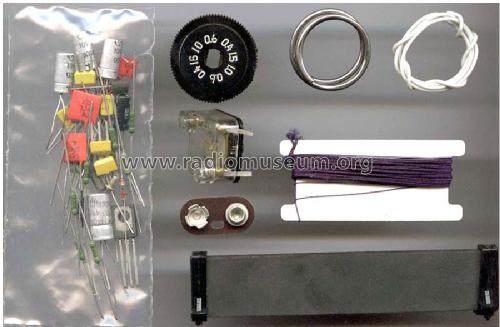

• Kit (Parts plus instruction) or building instructions only

• Radiomuseum.org ID
• 125002

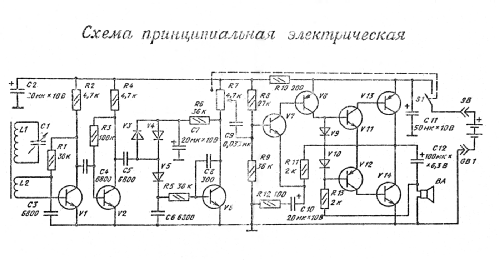

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 9

• Semiconductors

• Main principle
• TRF without regeneration

• Tuned circuits
• 1 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Dry Batteries / 9 Volt

• Loudspeaker

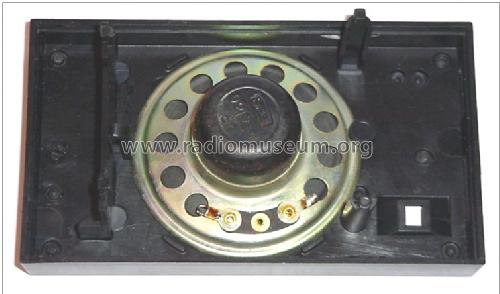

• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

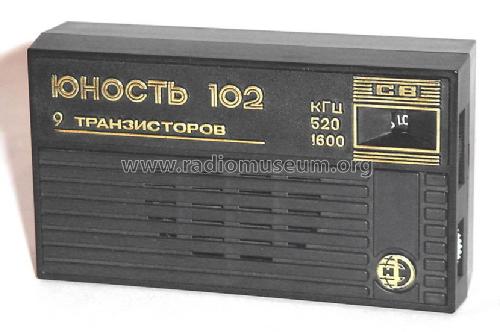

• Model: Ûnost' {Юность} [Junost] KP102 {КП102} - 1st Moskovsky

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Notes
• Bausatz: Audion mit eisenloser Gegentaktendstufe.

• Source of data
• -- Collector info (Sammler)

• Author
• Model page created by Günther Stabe † 19.8.20. See "Data change" for further contributors.
