• Country
• Soviet Union

• Manufacturer / Brand
• Moscow Radio engineering Works

• Year
• 1960 ??

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 191420

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 19

• Valves / Tubes
• 6Н3П 6Н3П 6Ж1П 6Ж1П 6Ж1П 6Ж1П 6П9 6Ж1П 6Ж1П 6Ж1П 6Ж1П 6П1П 6Н3П 6П1П 6Н3П 6П13С 1Ц11П 6Ц10П 35ЛК2Б

• Main principle
• Superheterodyne (common)

• Power type and voltage
• Alternating Current supply (AC)

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org

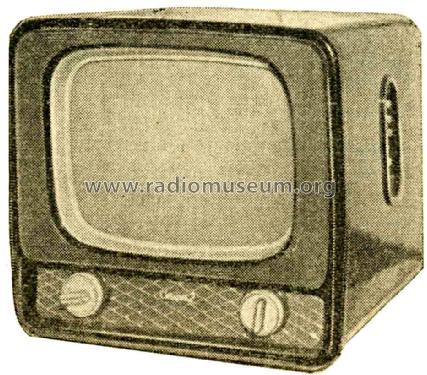

• Model: Start {Старт} 2 - Moscow Radio engineering Works

• Shape
• Tablemodel, low profile (big size).

• Literature/Schematics (1)
• G.P. Samojlov, 1965

• Author
• Model page created by a member from D. See "Data change" for further contributors.
