Sokol {Сокол} 404
Moscow TEMP Radio Works/Plant (ex-Moselektrik); Moskow
- Country
- Soviet Union
- Manufacturer / Brand
- Moscow TEMP Radio Works/Plant (ex-Moselektrik); Moskow
- Year
- 1977–1982
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 79449
Kaunas Lithuania
Kaunas Lithuania
Sokol 404 Exportvariante Innenansicht
fotografiert in der 'Heimatstube Streitwald'

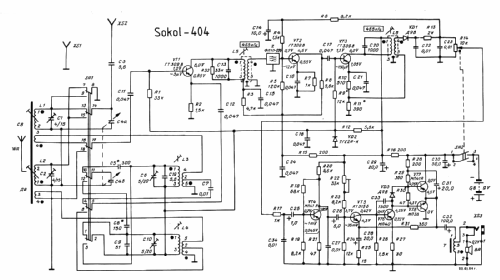

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 8
- Semiconductors
- Main principle
- Superheterodyne (common)
- Tuned circuits
- 4 AM circuit(s)
- Wave bands
- Broadcast (MW) and Long Wave.
- Power type and voltage
- Dry Batteries / 9 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 cm = 3.1 inch
- Power out
- 0.25 W (unknown quality)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Sokol {Сокол} 404 - Moscow TEMP Radio Works/Plant
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Dimensions (WHD)
- 205 x 110 x 65 mm / 8.1 x 4.3 x 2.6 inch
- Notes
- "Sokol"-translation in English-"Falcon".
Supply - six batteries type AA (6 x 1,5 V).Antenna, grounding and headphone plugs.
Coverage MW 186,9-571,4 m ; LW 740,7-2000 m.
- Net weight (2.2 lb = 1 kg)
- 0.6 kg / 1 lb 5.1 oz (1.322 lb)
- Price in first year of sale
- 31.00 SUR
- Source of data
- -- Original prospect or advert
- Author
- Model page created by Zenonas Langaitis. See "Data change" for further contributors.
- Other Models
-
Here you find 32 models, 29 with images and 22 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
