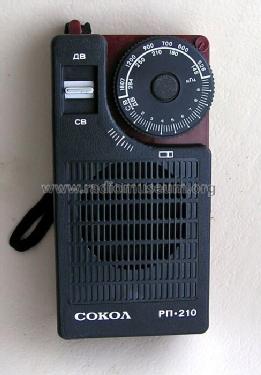

Sokol {Сокол} RP-210 {РП-210}

• Country
• Soviet Union

• Manufacturer / Brand
• Moscow TEMP Radio Works/Plant (ex-Moselektrik); Moskow

• Year
• 1991

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 98860

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 10

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Dry Batteries / 4 × 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 0.1 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Sokol {Сокол} RP-210 {РП-210} - Moscow TEMP Radio Works/Plant

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 162 x 82 x 38 mm / 6.4 x 3.2 x 1.5 inch

• Net weight (2.2 lb = 1 kg)
• 0.3 kg / 0 lb 10.6 oz (0.661 lb)

• Source of data
• - - Data from my own collection

• Literature/Schematics (1)
• -- Schematic

• Author
• Model page created by Zenonas Langaitis. See "Data change" for further contributors.
