• Country
• Soviet Union

• Manufacturer / Brand
• Moscow Krasny Oktyabr Works

• Year
• 1953

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 113028

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 6А7 6Б8С 6Ж8 6П6С 6Ц5С

• Main principle
• Superheterodyne (common)

• Tuned circuits
• 3 AM circuit(s)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Alternating Current supply (AC) / 127; 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 0.5 W (unknown quality)

• Material
• Bakelite case

• from Radiomuseum.org

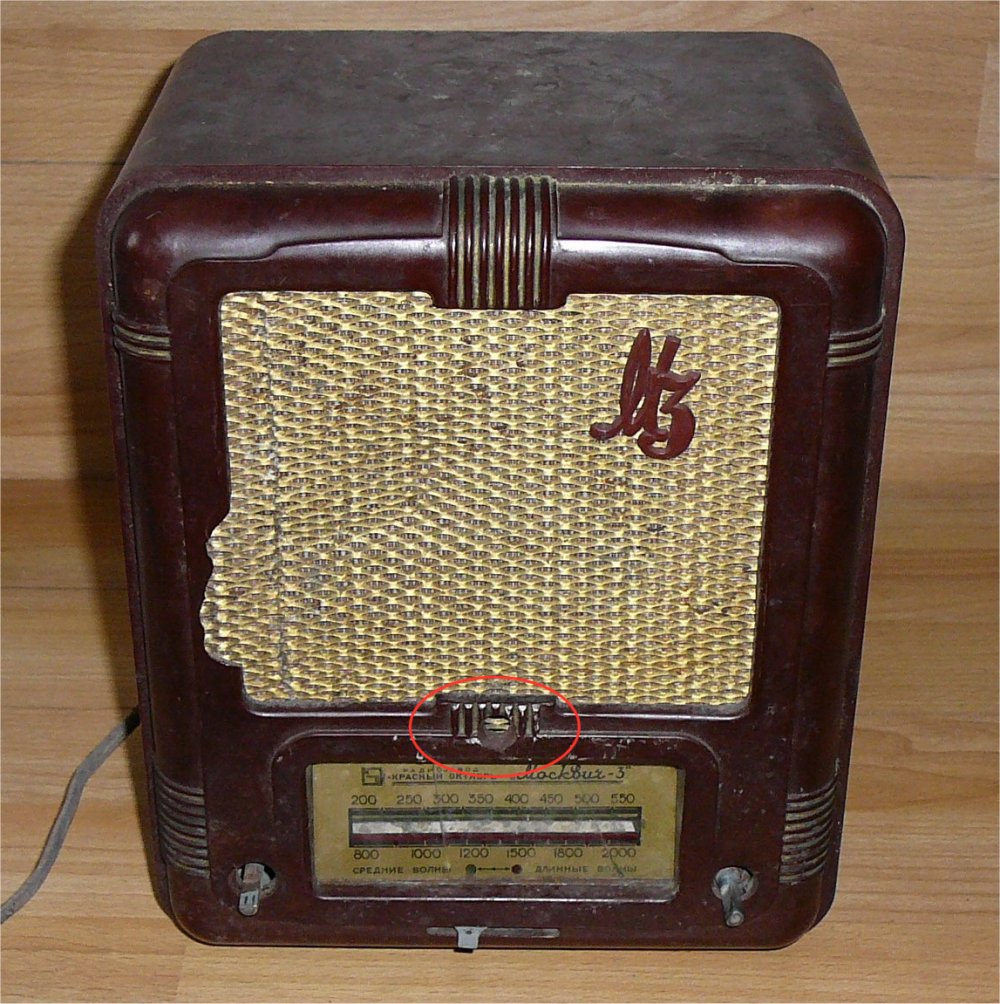

• Model: Moskvič - Москвич 3 - Moscow Krasny Oktyabr Works

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 225 x 270 x 160 mm / 8.9 x 10.6 x 6.3 inch

• Notes
• After modernize - radio set "Ogoniok", see RMorg.

• Net weight (2.2 lb = 1 kg)
• 5.5 kg / 12 lb 1.8 oz (12.115 lb)

• Mentioned in
• E.A.Levitin, Radio Sets, Moscow 1960

• Author
• Model page created by Gerhard Johanning. See "Data change" for further contributors.
