• Country
• Great Britain (UK)

• Manufacturer / Brand
• Motorola; London

• Year
• 1964 ?

• Category
• Car Radio, perhaps also + sound player/recorder

• Radiomuseum.org ID
• 175147

• • alternative name: Motorola Automotive
  • Brand: World Radio

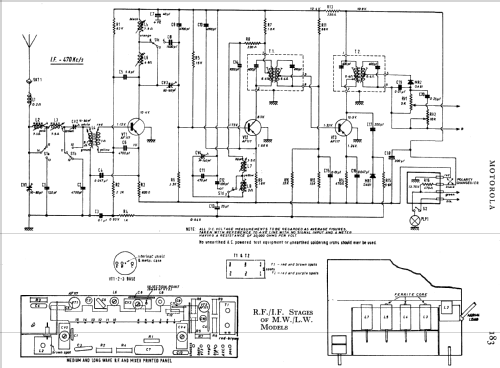

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 5

• Semiconductors
• AF117 AF117 AF117 OC82D AD140

• Main principle
• Superhet with RF-stage; ZF/IF 470 kHz; 2 AF stage(s)

• Wave bands
• Broadcast (MW) and Long Wave.

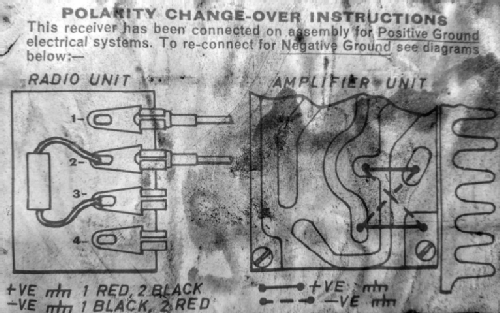

• Power type and voltage
• Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Metal case

• from Radiomuseum.org

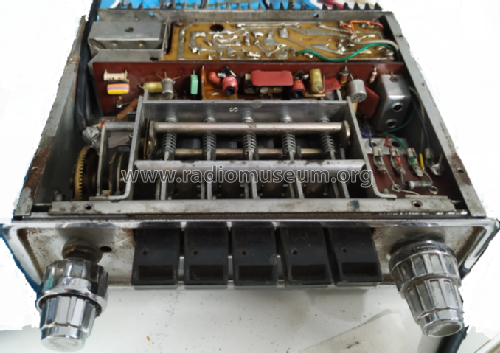

• Model: 717T - Motorola; London

• Shape
• Chassis only or for «building in»

• Notes
• Car radio with single-ended output stage.

• Source of data
• -- Schematic

• Circuit diagram reference
• Radio and TV Servicing books (R&TVS) book

• Author
• Model page created by Keith Staines. See "Data change" for further contributors.
