• Country
• Canada

• Manufacturer / Brand
• Motorola Canada Ltd., Toronto

• Year
• 1967–1969 ?

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 321034

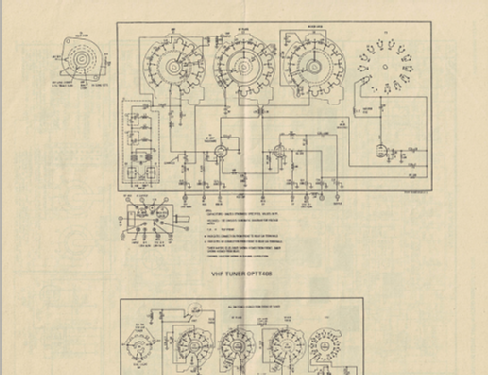

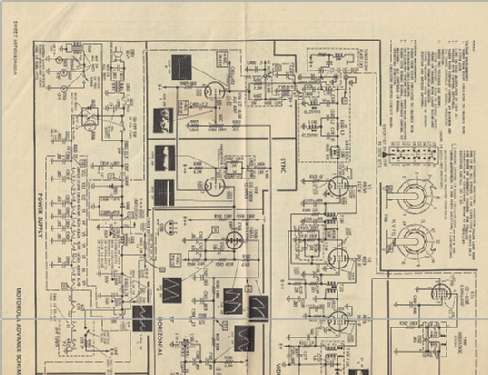

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 14

• Valves / Tubes
• 3HA5 6KZ8 4BZ6A 4BZ6 4BZ6 10DX8 6LN8 12T10 10GK6 6LN8 17JM6 20AQ3 3BL2 20WP4

• Number of Transistors
• 2

• Semiconductors

• Main principle
• Superhet with RF-stage

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Power type and voltage
• Alternating Current supply (AC) / 60Hz, 120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: BP5602KN Ch= 19TS597T91 - Motorola Canada Ltd., Toronto

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 570 x 420 x 360 mm / 22.4 x 16.5 x 14.2 inch

• Author
• Model page created by Germán Víctor Morelli. See "Data change" for further contributors.
