• Country
• Canada

• Manufacturer / Brand
• Motorola Canada Ltd., Toronto

• Year
• 1952 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 305666

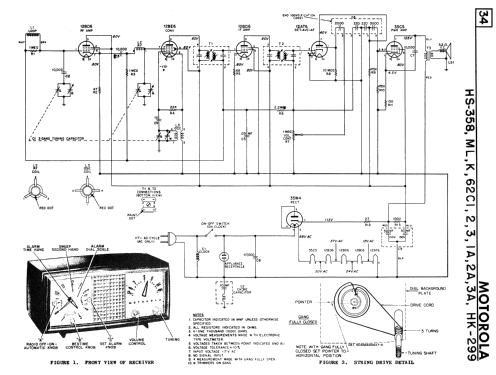

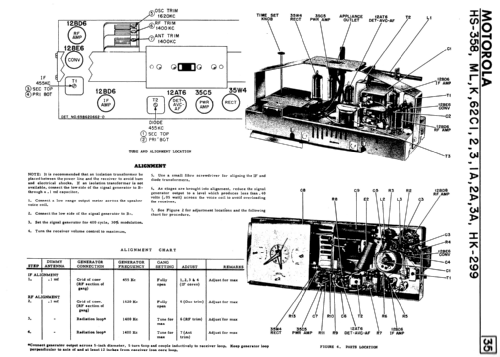

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 12BD6 12BE6 12BD6 12AT6 35C5 35W4

• Main principle
• Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Alternating Current supply (AC) / 60 Hz, 117 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

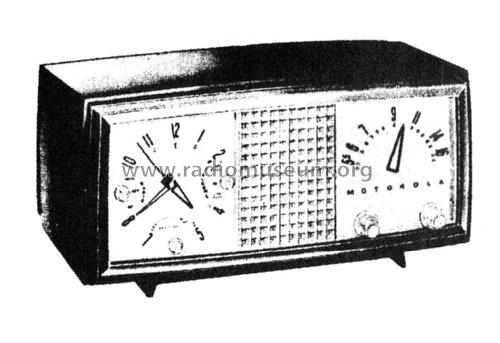

• Model: ML62C2A Ch= HK-299 - Motorola Canada Ltd., Toronto

• Shape
• Tablemodel with Clock ((Alarm-) Clock Radio).

• Notes

• The Motorola model ML62C2A is a 6-tube clock radio with appliance outlet. The R.F amlifier uses an unusual cathode follower circuit described here.

  Similar circuit and cabinet:

  Model	Colour	Chassis
  ML62C1	Walnut	HS-358
  ML62C2	Ivory	HS-358
  ML62C3	Green	HS-358
  MLK62C1	Walnut	HS-358
  MLK62C2	Ivory	HS-358
  MLK62C3	Green	HS-358
  ML62C1A	Walnut	HK-299
  ML62C2A	Ivory	HK-299
  ML62C3A	Green	HK-299



• Literature/Schematics (1)
• Radio College of Canada (RCC) (1953 Supplement 29)

• Author
• Model page created by Tom Seeger. See "Data change" for further contributors.
