• Country
• Canada

• Manufacturer / Brand
• Motorola Canada Ltd., Toronto

• Year
• 1952 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 299326

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 12BE6 12BD6 12AT6 50C5 35W4

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• AC/DC-set / 117 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

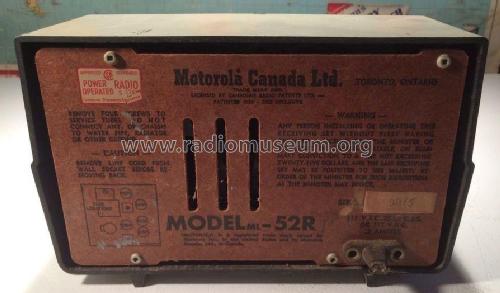

• Model: ML-52R Ch= HS351 - Motorola Canada Ltd., Toronto

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Notes

• The Canadian Motorola model ML-52R is a 5-tube table radio. Available in walnut, ivory, maroon, grey, green and red. May be similar to the USA model 52 series radios.

• Literature/Schematics (1)
• Radio College of Canada (RCC) (Supplement 27)

• Author
• Model page created by Tom Seeger. See "Data change" for further contributors.
