10T28B Ch= HS-589
Motorola Inc. (ex Galvin Mfg.Co. Chicago); Schaumburg (IL)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Motorola Inc. (ex Galvin Mfg.Co. Chicago); Schaumburg (IL)
- Year
- 1957/1958
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 181744

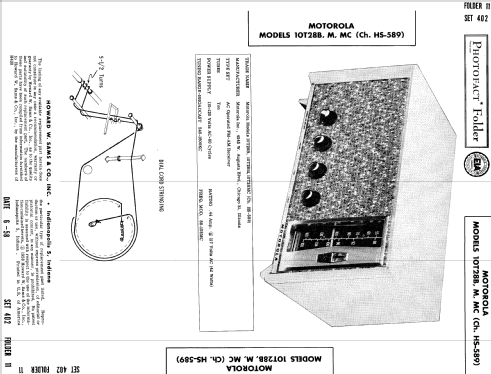

Sams Photofact Folders reference picture.

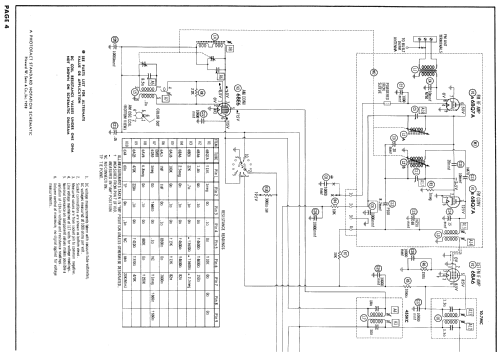

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 10
- Main principle
- Superhet with RF-stage; ZF/IF 455/10700 kHz
- Wave bands
- Broadcast (BC) and FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 110 - 120 Volt
- Loudspeaker
- 2 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org
- Model: 10T28B Ch= HS-589 - Motorola Inc. ex Galvin Mfg.Co
- Shape
- Tablemodel with Push Buttons.
- Notes
-
Color is Swedish Oak. This Motorola model 10T28 is available in different colors: model 10T28B in Swedish Oak, model 10T28M in Imperial Mahogany and model 10T28MC in California Mahogany.
- Literature/Schematics (1)

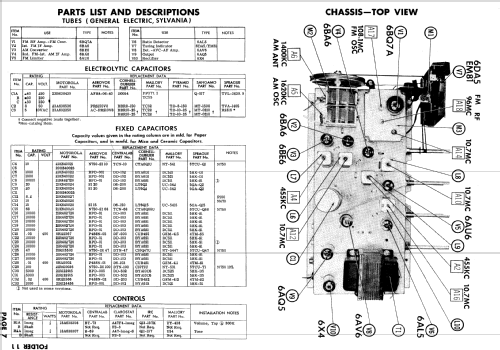

- Photofact Folder, Howard W. SAMS (Date 6-58, Set 402, Folder 11)
- Literature/Schematics (3)
- Motorola Folder No. 3752, for 1958.
- Author
- Model page created by Egon Penker. See "Data change" for further contributors.
