12BP73BE Ch= WTS-454

• Country
• United States of America (USA)

• Manufacturer / Brand
• Motorola Inc. (ex Galvin Mfg.Co. Chicago); Schaumburg (IL)

• Year
• 1966

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 239272

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 12

• Valves / Tubes
• 3HA5 or 3HM5 6KZ8 4BZ6 5JK6 10DX8 or LCL84 6LN8 or LCF80 17BF11 6LN8 or LCF80 10CW5 33GY7 1X2 12BGP4 or 12BKP4

• Main principle
• Superhet with RF-stage

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Power type and voltage
• Alternating Current supply (AC) / 60 cycles, 120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical / Ø 3 inch = 7.6 cm

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: 12BP73BE Ch= WTS-454 - Motorola Inc. ex Galvin Mfg.Co

• Shape
• Tablemodel, low profile (big size).

• Notes

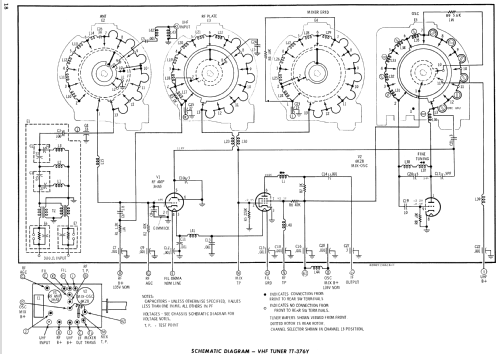

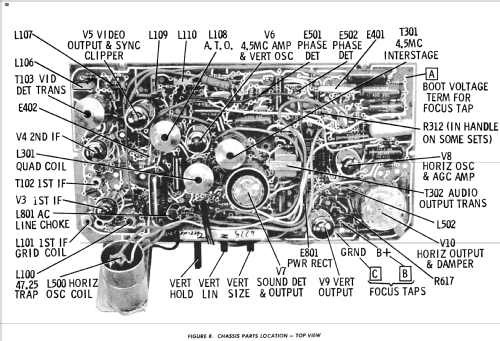

• The Motorola 12BP73BE is a 12" b/w TV with US standard VHF Tuner channels 2 thru 13, 14 thru 83 UHF. Equipped with chassis WTS-454, VHF tuner CMTT-393Y, UHF tuner TT-622 or KTT-622 and picture tube 12BGP4 or 12BKP4. Table model with plastic cabinet, with white cabinet front and charcoal cabinet back.

• Source of data
• - - Manufacturers Literature

• Literature/Schematics (2)

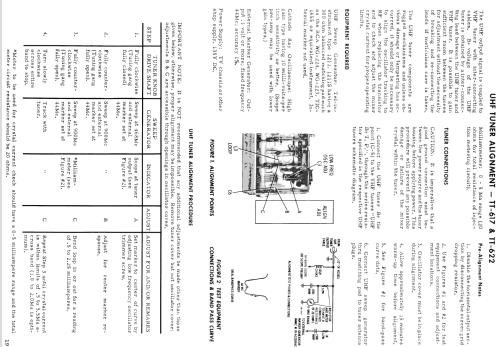

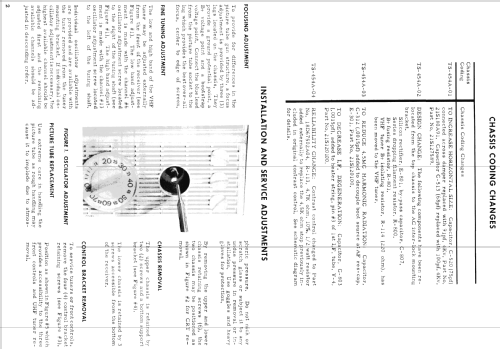

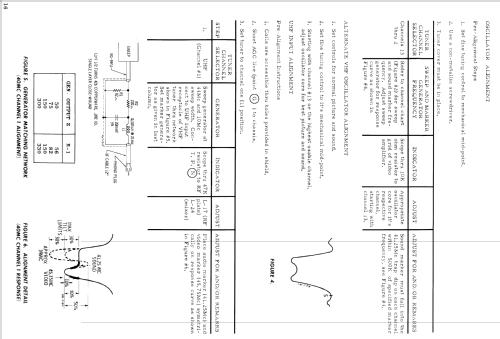

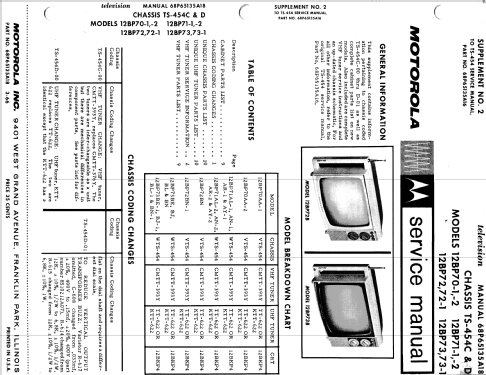

• - - Manufacturers Literature (Motorola Datasheet 68P65135A16 Dated 2-65)

• Literature/Schematics (3)
• - - Manufacturers Literature (Motorola Datasheet 68P65135A18 Dated 3-66)

• Author
• Model page created by John Kusching. See "Data change" for further contributors.
