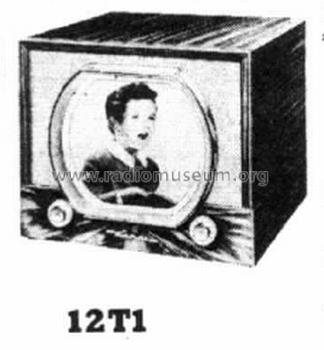

12T1 Ch= TS-23B

Motorola Inc. (ex Galvin Mfg.Co. Chicago); Schaumburg (IL)

Data
Forum
Pictures
Collections

  • Year
  • 1950
  • Category
  • Television Receiver (TV) or Monitor
  • Radiomuseum.org ID
  • 218483

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 19
  • Main principle
  • Superhet with RF-stage
  • Wave bands
  • VHF incl. FM and/or UHF (see notes for details)
  • Power type and voltage
  • Alternating Current supply (AC) / 60 cycles, 117 Volt
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 6 inch = 15.2 cm
  • Power out
  • 4 W (undistorted)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: 12T1 Ch= TS-23B - Motorola Inc. ex Galvin Mfg.Co
  • Shape
  • Tablemodel, with any shape - general.
  • Notes

  • The Motorola 12T11 is a 12" b/w TV with US standard VHF Tuner channels 2 thru 13. Equipped with chassis TS-23B and picture tube 12LP4. Table model with Red-Brown Mahogany wooden cabinet. Has Qty(2) Selenium Rectifiers used for power supply rectification and Qty(1) germanium diode video detector.

    This model is part of a series of TVs produced by Motorola using the TS-14, TS-23, and TS-52 chassis.  According to Rider TV vol. 5, the TS-14 chassis was used in 10 inch sets with 10BP4 CRT.  The TS-23 chassis was used in 12 inch sets with 12LP4 CRT, and is identical to the TS-14 chassis except for the high voltage transformer.  The TS-52 chassis was used in 16 inch sets with 16AP4 CRT, and is similar to the TS-14 and TS-23 chassis, except for the high voltage transformer, addition of a second 6BQ6 horizontal output tube, and the use of 25L6GT for the vertical output tube.

    There are variations for each chassis type:  For TS-14A and TS-23A, the 3rd IF tube was changed from 6AU6 to 6AG5.  For TS-14B and TS-23B, the video amplifier tube was changed from 6AU6 to 6AH6, and an additional tap was added to the contrast control.  Chassis TS-52 has the same changes as TS-14B and TS-23B.

  • Price in first year of sale
  • 220.00 $
  • Mentioned in
  • -- Original prospect or advert
  • Literature/Schematics (1)
  • Rider TV vol. 5
  • Literature/Schematics (2)
  • - - Manufacturers Literature (Motorola Datasheet 54P7000225)
  • Author
  • Model page created by a member from A. See "Data change" for further contributors.
