13KT15B Ch= HS-677
Motorola Inc. (ex Galvin Mfg.Co. Chicago); Schaumburg (IL)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Motorola Inc. (ex Galvin Mfg.Co. Chicago); Schaumburg (IL)
- Year
- 1959
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 153114
Picture from Motorola datasheet

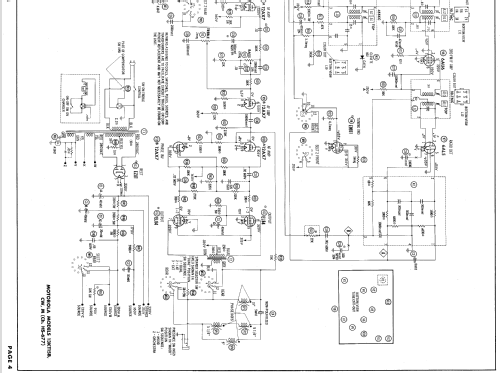

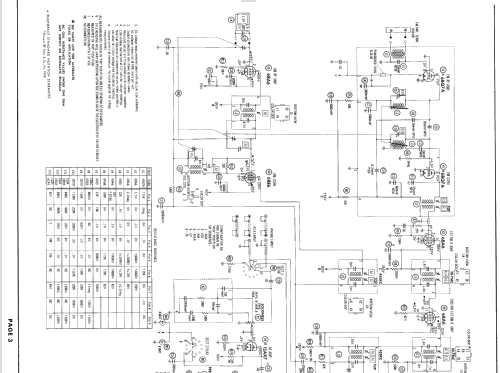

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 13
- Main principle
- Superhet with RF-stage; ZF/IF 455/10700 kHz
- Wave bands
- Broadcast (BC) and FM or UHF.
- Details
- Changer (Record changer)
- Power type and voltage
- Alternating Current supply (AC) / 110 - 120 Volt
- Loudspeaker
- 4 Loudspeakers
- Power out
- 10 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: 13KT15B Ch= HS-677 - Motorola Inc. ex Galvin Mfg.Co
- Shape
- Console, Lowboy (legs < 50 %).
- Notes
- The Motorola Model 13KT15B is an AC operated mono 13 Tube AM-FM Tuner and Audio Amplifier with 4 Speed Automatic Record Changer. AM Tuning Range: 540 to 1600KHz, FM Tuning Range: 88 to 108MHz. Has Qty (1) 15" PM speaker, Qty(2) 5.25" PM speakers and Qty(1) 5" PM speaker. Uses Record Changer VM17RC. Cabinet is Blonde. Can be converted to Stereo operation using conversion kit.
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Date 8-59, Set 451, Folder 10)
- Literature/Schematics (2)
- - - Manufacturers Literature
- Author
- Model page created by Egon Penker. See "Data change" for further contributors.
