14MR American Motors 8990833
Motorola Inc. (ex Galvin Mfg.Co. Chicago); Schaumburg (IL)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Motorola Inc. (ex Galvin Mfg.Co. Chicago); Schaumburg (IL)
- Year
- 1960 ?
- Category
- Car Radio, perhaps also + sound player/recorder
- Radiomuseum.org ID
- 85451
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 4
- Number of Transistors
- 3
- Semiconductors
- Main principle
- Superhet with RF-stage; ZF/IF 262.5 kHz; 3 AF stage(s)
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Storage Battery for all (e.g. for car radios and amateur radios) / 14 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Metal case
- from Radiomuseum.org

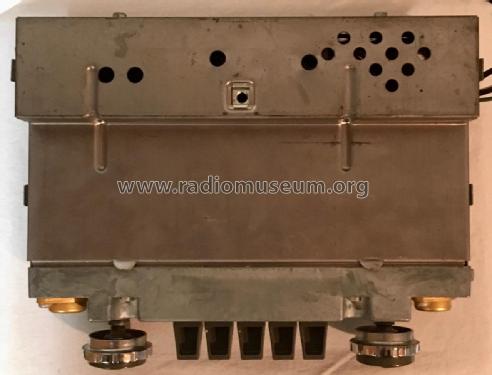

- Model: 14MR American Motors 8990833 - Motorola Inc. ex Galvin Mfg.Co
- Shape
- Chassis only or for «building in»
- Dimensions (WHD)
- 9 x 3 x 7 inch / 229 x 76 x 178 mm
- Net weight (2.2 lb = 1 kg)
- 5 lb 0 oz (5 lb) / 2.270 kg
- Circuit diagram reference
- Beitman Radio Diagrams Vol. 21, 1961
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS ((Set 567 folder4 date 2-62))
- Author
- Model page created by Egon Penker. See "Data change" for further contributors.
