14P14-1 Ch= TS-434
Motorola Inc. (ex Galvin Mfg.Co. Chicago); Schaumburg (IL)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Motorola Inc. (ex Galvin Mfg.Co. Chicago); Schaumburg (IL)
- Year
- 1959
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 139604

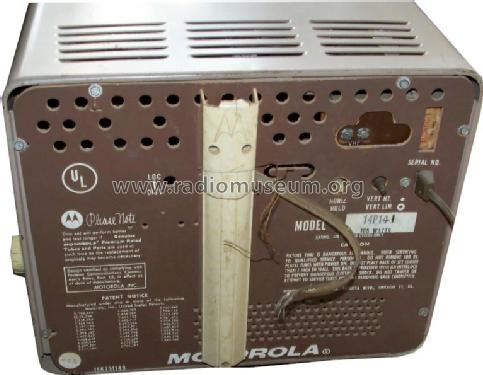

Ebay auction 310170198154 / adopted pic.

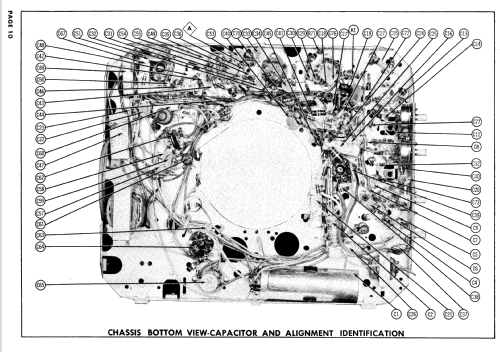

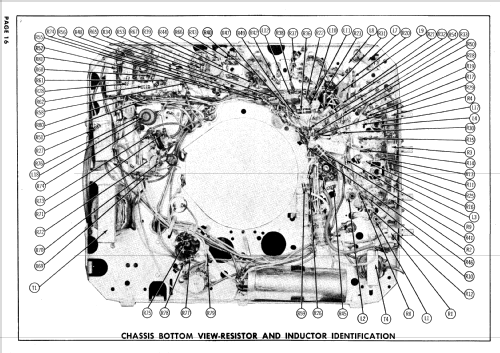

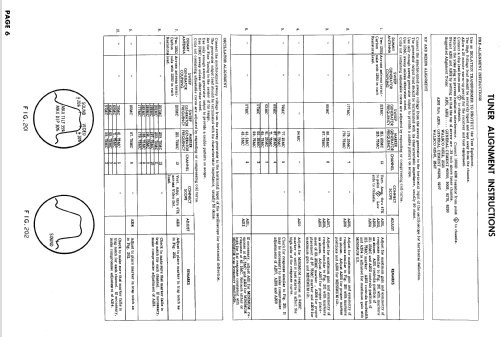

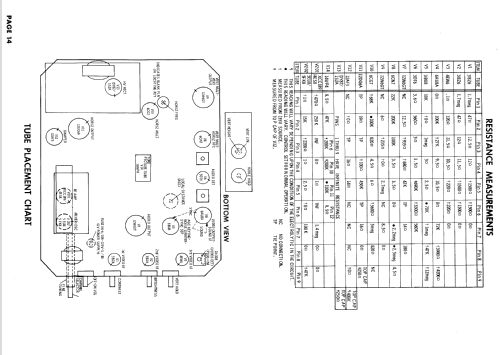

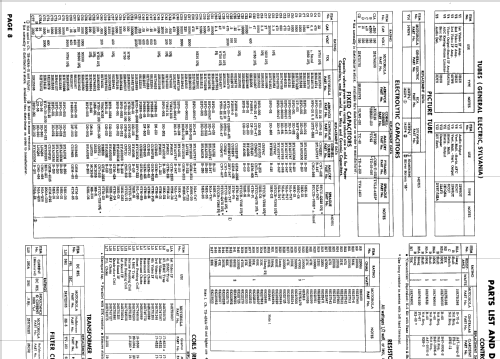

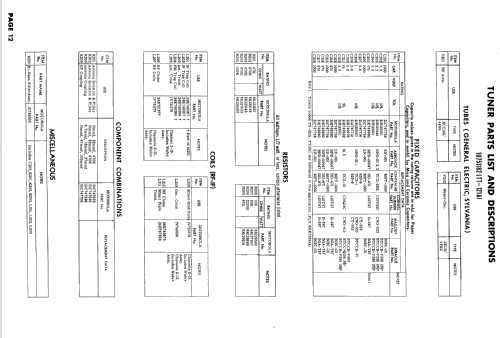

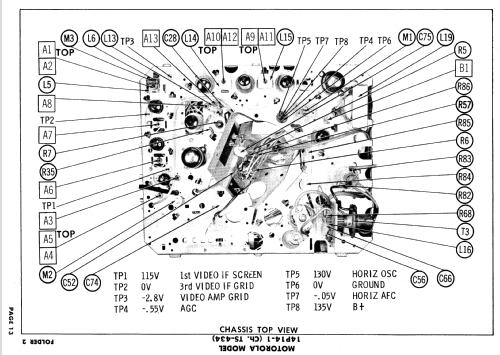

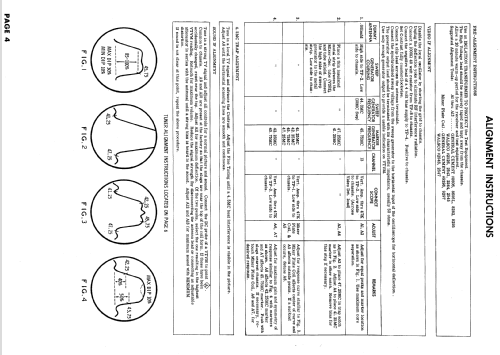

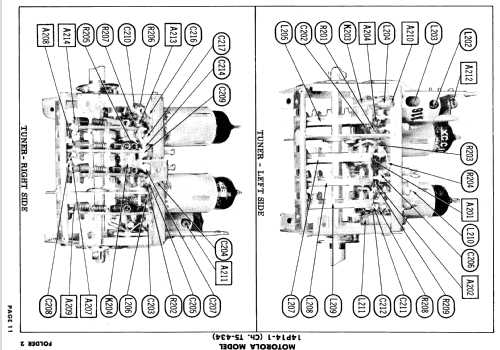

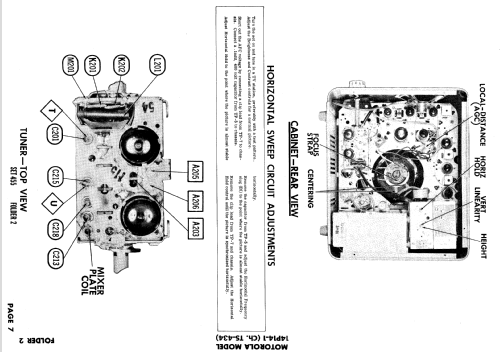

Sams Photofact Folders
Ebay auction 310170198154 / adopted pic.
Sams Photofact Folders
Ebay auction 310170198154 / adopted pic.

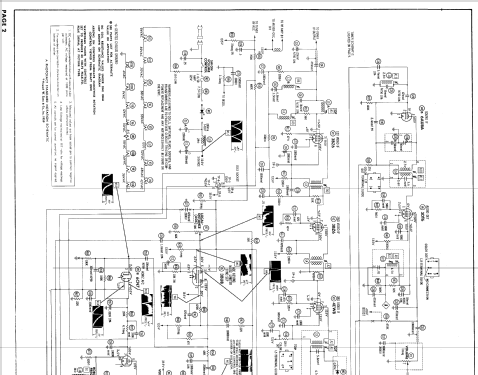

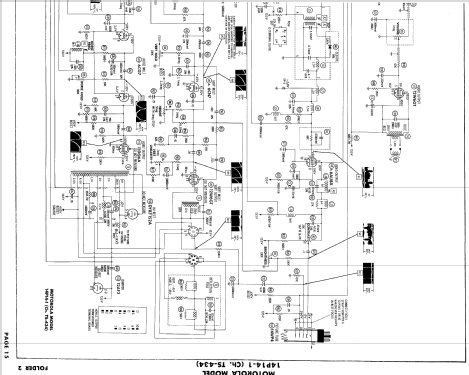

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 16
- Valves / Tubes
- Main principle
- Superheterodyne (common)
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Alternating Current supply (AC) / 110 - 120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
- Material
- Metal case
- from Radiomuseum.org
- Model: 14P14-1 Ch= TS-434 - Motorola Inc. ex Galvin Mfg.Co
- Shape
- Tablemodel, with any shape - general.
- Notes
- Motorola 14P14-1;

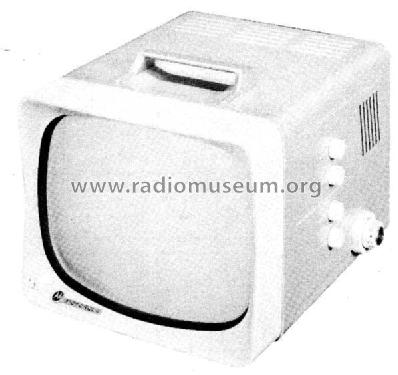

~14" portable style b/w TV with US standard VHF tuner, local/dist. switch, carrying handle.
Tuning Range: Channels 2 thru 13 VHF.
- Source of data
- -- Collector info (Sammler)
- Literature/Schematics (1)

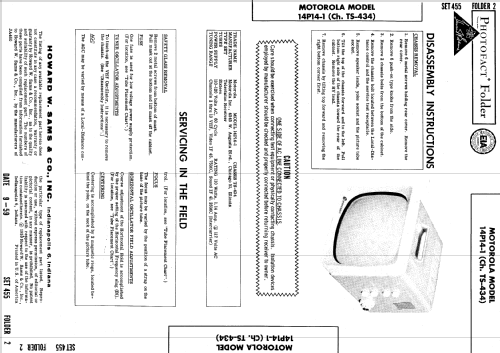

- Photofact Folder, Howard W. SAMS (Date 9-59, Set 455, Folder 2)
- Author
- Model page created by a member from A. See "Data change" for further contributors.
