• Country
• United States of America (USA)

• Manufacturer / Brand
• Motorola Inc. (ex Galvin Mfg.Co. Chicago); Schaumburg (IL)

• Year
• 1950 ?

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 339848

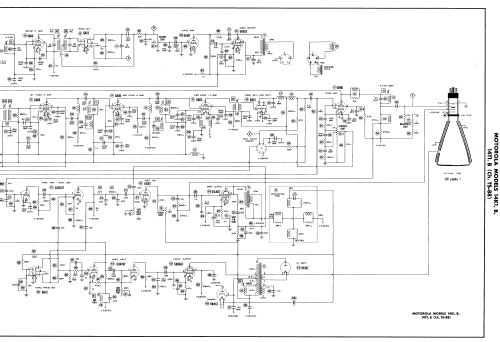

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 20

• Valves / Tubes
• 6CB6 12AT7 6AU6 6AU6 6AG5 6AL5 6AH6 6AU6 6AL5 6J5GT 6V6GT 6SN7GT 6J5GT 25L6GT 6AL5 6SN7GT 6BQ6GT 6W4GT 1B3GT 14BP4 or 14CP4

• Main principle
• Superhet with RF-stage

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt

• Loudspeaker
• 2 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org

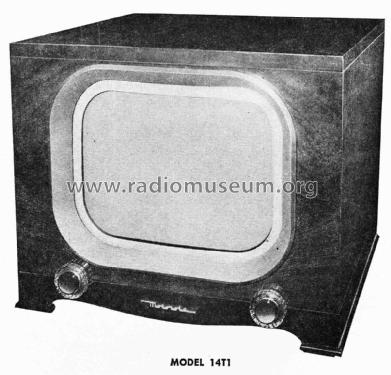

• Model: 14T1 Ch= TS-88 - Motorola Inc. ex Galvin Mfg.Co

• Shape
• Tablemodel, with any shape - general.

• Notes

• Motorola model 14T1 is a 14” b/w TV with US standard VHF tuner channels 2 thru 13.
  Equipped with chassis TS-88, VHF tuner 1X700100 and picture tube 14BP4 or 14CP4.



• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Set 112, Folder 6 dated 11-50)

• Author
• Model page created by Dirk Taekels. See "Data change" for further contributors.

• Other Models

• Here you find 4623 models, 2967 with images and 4123 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Motorola Inc. (ex Galvin Mfg.Co. Chicago); Schaumburg (IL)
