• Country
• United States of America (USA)

• Manufacturer / Brand
• Motorola Inc. (ex Galvin Mfg.Co. Chicago); Schaumburg (IL)

• Year
• 1953 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 105635

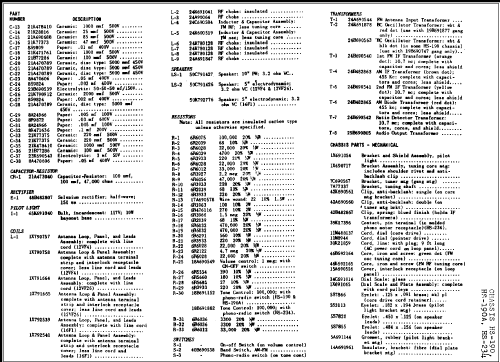

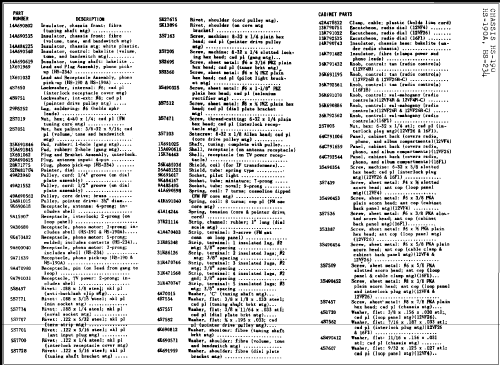

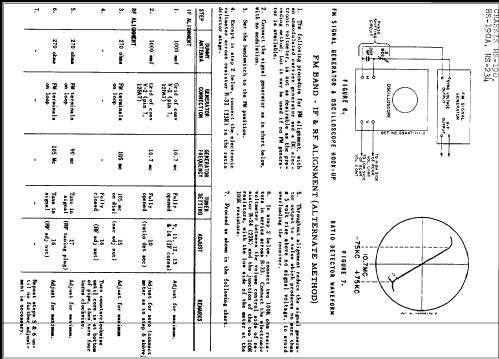

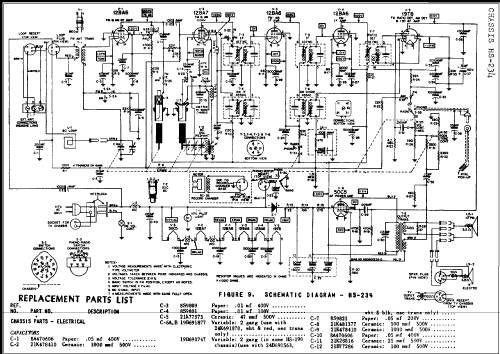

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 12BE6 12BA7 12BA6 12BA6 19T8 50C5

• Number of Transistors

• Semiconductors
• Tr.Gl.=Metal-rectif.

• Main principle
• Superheterodyne (common); ZF/IF 455/10700 kHz

• Wave bands
• Broadcast (BC) and FM or UHF.

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 117 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 inch = 25.4 cm

• Power out
• 2 W (unknown quality)

• from Radiomuseum.org
• Model: 16F1B Ch= HS-234 - Motorola Inc. ex Galvin Mfg.Co

• Notes
• Model 16F1B is a Radio/Phono/TV combination and consists of the AM/FM Radio chassis HS-234, Record Changer RC-36 and TV-Chassis TS-60 Series.

• Circuit diagram reference
• Rider's Perpetual, Volume 21, Copyright 1950

• Author
• Model page created by Egon Penker. See "Data change" for further contributors.
