17F13B Ch= TS-395A HS-319
Motorola Inc. (ex Galvin Mfg.Co. Chicago); Schaumburg (IL)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Motorola Inc. (ex Galvin Mfg.Co. Chicago); Schaumburg (IL)
- Year
- 1953 ?
- Category
- Television- and Radio Receiver, perh. also + Rec. etc. (TV Radio)
- Radiomuseum.org ID
- 206815
Data taken from Motorola datasheet

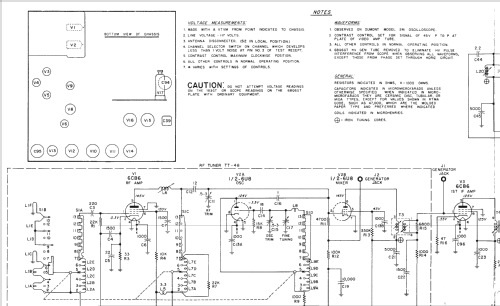

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 23
- Valves / Tubes
- 6CB6 6U8 6CB6 6CB6 6CB6 6AH6 6AU6 6AL5 6SN7GT 6W6GT 6SN7GT 12BH7 6SN7GT 6BQ6GT 12AX4GT 1B3GT 17LP4 6BA6 6BE6 6BA6 6AV6 6V6GT 5Y3GT
- Main principle
- Superhet with RF-stage
- Wave bands
- Wave Bands given in the notes.
- Details
- Record Player (perh.Changer)
- Power type and voltage
- Alternating Current supply (AC) / 117 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 inch = 25.4 cm
- Material
- Wooden case
- from Radiomuseum.org
- Model: 17F13B Ch= TS-395A HS-319 - Motorola Inc. ex Galvin Mfg.Co
- Shape
- Console, Lowboy (legs < 50 %).
- Notes
-
See tubes for the first possible year of market introduction, for instance of the 6U8.
17" b/w TV/Radio/Phonograph combination model with US standard VHF Tuner channels 2 thru 13, radio BC band. Cabinet blonde. TV chassis TS-395, Radio chassis HS-319, record changer RC-40.
- Source of data
- - - Manufacturers Literature
- Author
- Model page created by John Kusching. See "Data change" for further contributors.
