- Country
- United States of America (USA)
- Manufacturer / Brand
- Motorola Inc. (ex Galvin Mfg.Co. Chicago); Schaumburg (IL)
- Year
- 1960
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 150308
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 0
- Main principle
- Superhet with RF-stage
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Alternating Current supply (AC) / 120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org

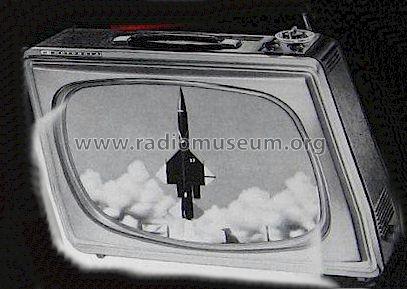

- Model: 17P6-2 - Motorola Inc. ex Galvin Mfg.Co
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 19 x 17 x 10.5 inch / 483 x 432 x 267 mm
- Notes
- Motorola 17P6-2;
~17" B/W portable style TV with US standard VHF turret tuner, built-in telescopic antenna, 175 W power consumption.
- Literature/Schematics (1)
- Funk-Technik (FT) (14/1960, S. 510 - 512 / Neuentwicklung, Beschreibung, Schema)
