17T28-1 Ch= TS-422

• Country
• United States of America (USA)

• Manufacturer / Brand
• Motorola Inc. (ex Galvin Mfg.Co. Chicago); Schaumburg (IL)

• Year
• 1957 ?

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 264045

• Picture
• Schematics

Previous Next

Previous Next

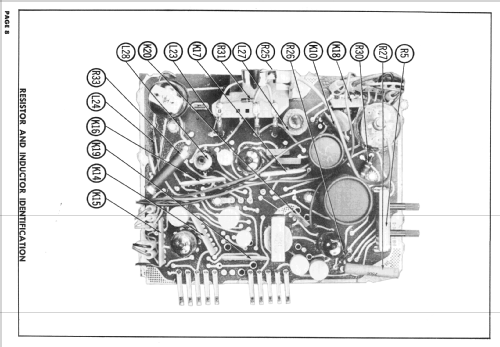

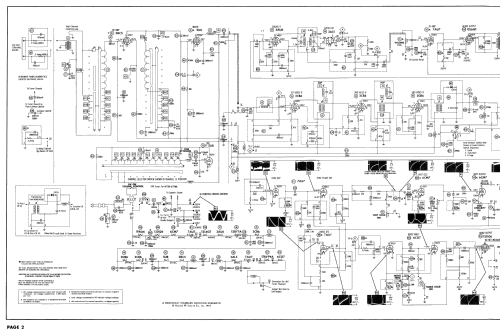

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 17

• Valves / Tubes
• 3BC5 or 3CE5 5U8 3CB6 3CB6 3CB6 12BY7A 3AU6 3AL5 7AU7 12L6GT 7AU7 6CG7 12DQ6 19AU4 1B3 6CM7 17AVP4A or 17AVP4

• Main principle
• Superhet with RF-stage; 2 AF stage(s)

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Power type and voltage
• Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm

• Material
• Metal case

• from Radiomuseum.org
• Model: 17T28-1 Ch= TS-422 - Motorola Inc. ex Galvin Mfg.Co

• Shape
• Tablemodel, low profile (big size).

• Notes

• The Motorola 17T28 is a 17" b/w TV with US FCC standard VHF tuner channels 2 thru 13. Equipped with chassis TS-422, VHF tuner TT-84 and picture tube 17AVP4A or 17AVP4.
  Has Qty(2) Selenium rectifiers.

  The 17T28 Series of TV's consisted of the following models:

  Model	Bands	Chassis	VHF/UHF Tuners	Cabinet Colors
  17T28-1	VHF	TS-422	TT-84	Mocha & antique white
  Y17T28-1	VHF, UHF	TS-422Y	VTT-86Y/WTT-87	Mocha & antique white
  17T28-2	VHF	TS-422	TT-84	Flame & antique white
  Y17T28-2	VHF, UHF	TS-422Y	VTT-86Y/WTT-87	Flame & antique white
  17T28-3	VHF	TS-422	TT-84	Maple sugar & antique white
  Y17T28-3	VHF, UHF	TS-422Y	VTT-86Y/WTT-87	Maple sugar & antique white



• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Set 344 Folder 18-S date 1 - 57)

• Literature/Schematics (2)
• - - Manufacturers Literature (Motorola Service Manual 68P738085 dated 1957)

• Literature/Schematics (3)
• Photofact Folder, Howard W. SAMS (Set 368 Folder 9 dated 8-57)

• Author
• Model page created by Dirk Taekels. See "Data change" for further contributors.
