21F3B Ch= TS-292, HS-316

Motorola Inc. (ex Galvin Mfg.Co. Chicago); Schaumburg (IL)

Data
Forum
Pictures
Collections

  • Year
  • 1953
  • Category
  • Television- and Radio Receiver, perh. also + Rec. etc. (TV Radio)
  • Radiomuseum.org ID
  • 233883

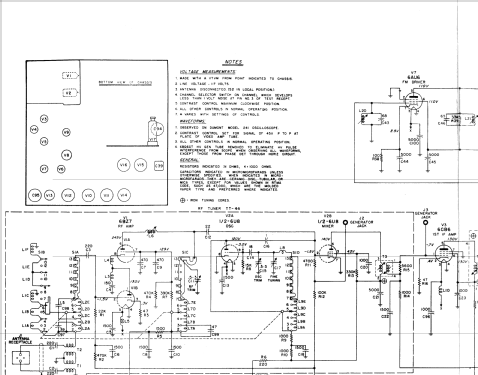

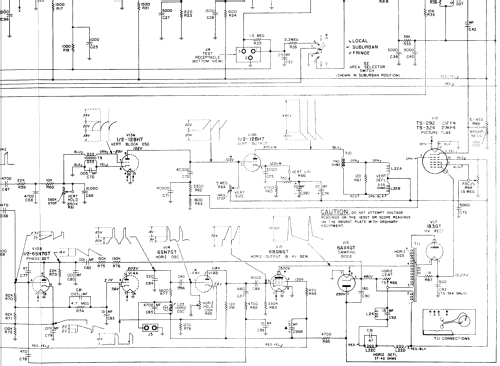

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 27
  • Main principle
  • Superhet with RF-stage
  • Wave bands
  • Wave Bands given in the notes.
  • Details
  • Changer (Record changer)
  • Power type and voltage
  • Alternating Current supply (AC) / 60 cycles, 117 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 inch = 25.4 cm
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: 21F3B Ch= TS-292, HS-316 - Motorola Inc. ex Galvin Mfg.Co
  • Shape
  • Console with any shape - in general
  • Notes

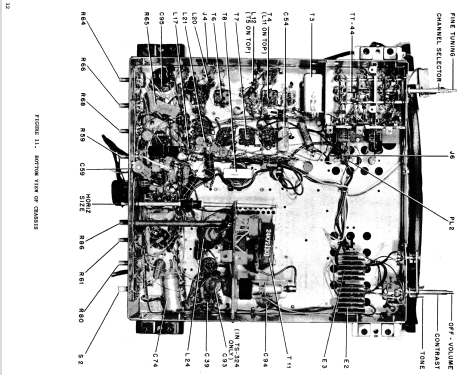

  • The Motorola 21F3B is an AC operated 27 tube combination phonograph, BC/FM band receiver and 21" b/w TV with US standard VHF Tuner channels 2 thru 13. Equipped with chassis TS-292, VHF tuner TT-44, picture tube 21FP4 (all for TV), chassis HS-316 (for BC/FM band receiver), and RC-40 record changer .  Console model with Toasted Mahogany cabinet. Has Qty(2) Selenium Rectifiers and Qty(1) germanium diode detector in TV chassis.

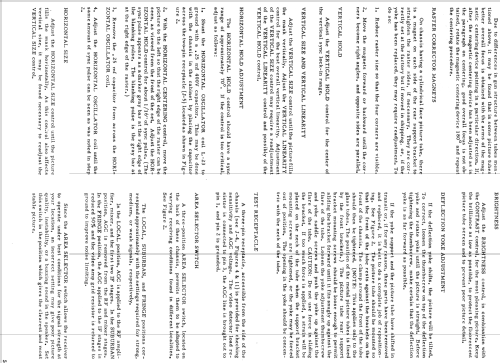

    Except for common speaker, the BC/FM band chassis operates independantly from the TV chassis.  Refer to HS-316 service manual for service data on the BC/FM band chassis.

    This model is similar to model 21F2 except has the record changer located above the BC/FM band receiver instead of below it.

  • Source of data
  • - - Manufacturers Literature
  • Literature/Schematics (1)
  • - - Manufacturers Literature (Motorola Datasheet 69P721605)
  • Author
  • Model page created by John Kusching. See "Data change" for further contributors.
