21T43B Ch= TS-542

• Country
• United States of America (USA)

• Manufacturer / Brand
• Motorola Inc. (ex Galvin Mfg.Co. Chicago); Schaumburg (IL)

• Year
• 1957

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 232705

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 18

• Valves / Tubes
• 4BC8 5U8 3BZ6 3BZ6 3CB6 12BY7A 3BU8 6CG7 3AL5 6CG7 12DQ6 19AU4 5AQ5 3CB6 3DT6 5AQ5 3A3 21CBP4A

• Main principle
• Superhet with RF-stage

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Power type and voltage
• Alternating Current supply (AC) / 60 cycles, 120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5.25 inch = 13.3 cm

• Material
• Wooden case

• from Radiomuseum.org
• Model: 21T43B Ch= TS-542 - Motorola Inc. ex Galvin Mfg.Co

• Shape
• Tablemodel, low profile (big size).

• Notes

• The Motorola 21T43B is a 21" b/w TV with US standard VHF Tuner channels 2 thru 13. Equipped with chassis TS-542, VHF tuner TT-96 and picture tube 21CBP4A.  Table model, Blonde Oak, masonite. Has Qty(2) Selenium Rectifiers.

• Source of data
• - - Manufacturers Literature

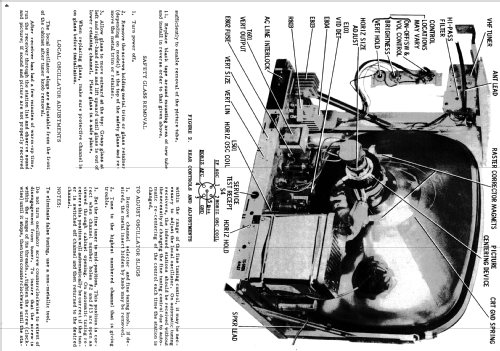

• Literature/Schematics (1)
• - - Manufacturers Literature (Motorola Datasheet 68P742587)

• Literature/Schematics (2)
• Photofact Folder, Howard W. SAMS (Set 382 Folder 1 1957)

• Author
• Model page created by John Kusching. See "Data change" for further contributors.
