• Country
• United States of America (USA)

• Manufacturer / Brand
• Motorola Inc. (ex Galvin Mfg.Co. Chicago); Schaumburg (IL)

• Year
• 1953 ?

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 360773

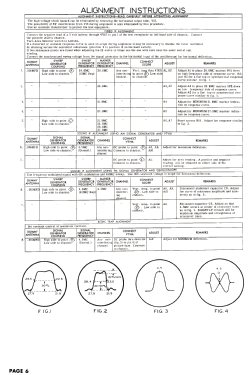

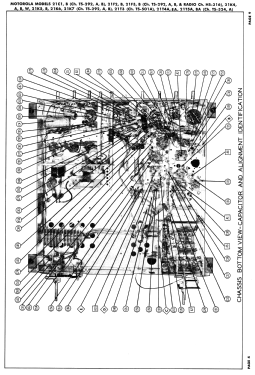

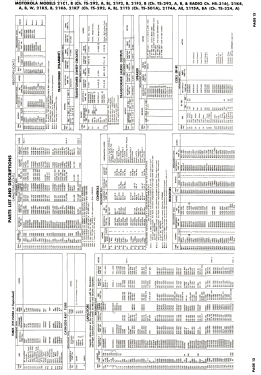

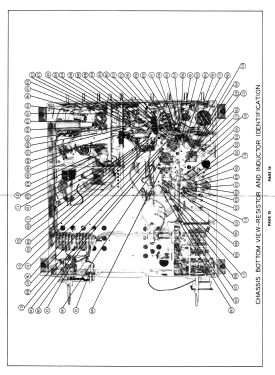

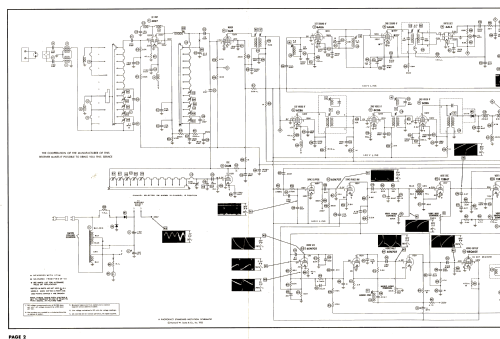

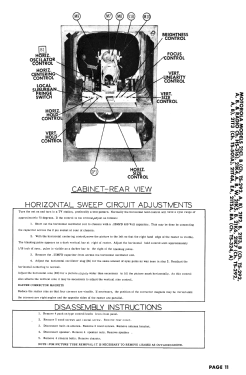

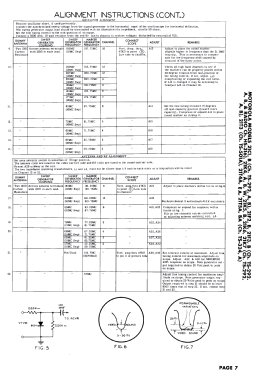

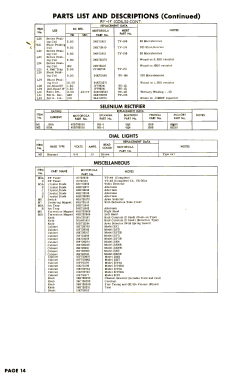

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 18

• Valves / Tubes
• 6BZ7 6U8 6CB6 6CB6 6CB6 6AH6 6AU6 6AU6 6AL5 6SN7GT 6W6GT 6SN7GT 12BH7 6SN7GT 6BQ6GT 6AX4GT 1B3GT 21FP4

• Main principle
• Superhet with RF-stage

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 60Hz, 117V=110-120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 inch = 25.4 cm

• Material
• Wooden case

• from Radiomuseum.org
• Model: 21T5BA Ch= TS-324A - Motorola Inc. ex Galvin Mfg.Co

• Shape
• Console with any shape - in general

• Notes

• Motorola model 21T5BA is a 21” b/w TV with US standard VHF tuner channels 2 thru 13. Equipped with chassis TS-324A, VHF tuner 1U720970 and picture tube 21FP4. Typo in tube parts list , V15 6BQ7GT has to be 6BQ6GT.



• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Set 191, folder 13, dated 1-53)

• Author
• Model page created by Dirk Taekels. See "Data change" for further contributors.
