23LK408AW-1 Ch= VTS-908Y HS-1241 HS-1259

Motorola Inc. (ex Galvin Mfg.Co. Chicago); Schaumburg (IL)

Data
Forum
Pictures
Collections

  • Year
  • 1964 ?
  • Category
  • Television- and Radio Receiver, perh. also + Rec. etc. (TV Radio)
  • Radiomuseum.org ID
  • 251181

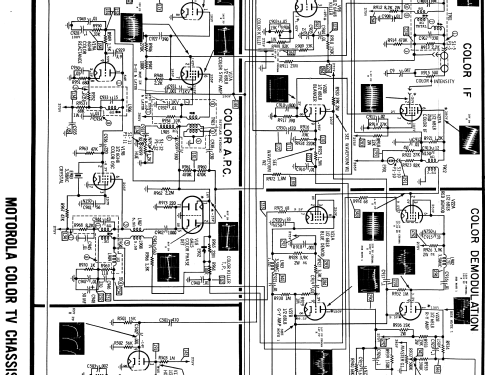

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 33
  • Number of Transistors
  • 19
  • Semiconductors
  • Main principle
  • Superhet with RF-stage
  • Wave bands
  • Wave Bands given in the notes.
  • Details
  • Changer (Record changer)
  • Power type and voltage
  • Alternating Current supply (AC) / 60 cycles, 117 Volt
  • Loudspeaker
  • 5 Loudspeakers
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: 23LK408AW-1 Ch= VTS-908Y HS-1241 HS-1259 - Motorola Inc. ex Galvin Mfg.Co
  • Shape
  • Console with any shape - in general
  • Notes

  • The Motorola 23LK408AW-1 is a combination AM, FM Stereo, Phonograph and 23" color TV with US standard VHF Tuner channels 2 thru 13, 14 thru 83 UHF. AM band tuning range is 535 to1620kHz.  FM band tuning range is 88 to 108MHz. Equipped with TV chassis VTS-908Y (25 tubes + picture tube 23EGP22), VHF tuner SPTT-336Y (2 tubes), UHF tuner JTT-613 (1 transistor), AM/FM Stereo tuner chassis HS-1259 (5 tubes, 9 transistors) and 3 channel 150W Power Amplifier chassis HS-1241 (9 transistors). Uses record changer VM110RC.  Has Qty(2) PM 3.5" speakers, Qty(2) PM 6" speakers and Qty(1) PM 12" speaker, which is connected as a center channel bass speaker. Cabinet is oiled Walnut.

  • Source of data
  • - - Manufacturers Literature
  • Literature/Schematics (1)
  • - - Manufacturers Literature (Motorola Datasheet 68P65110A81 Dated 11-64)
  • Literature/Schematics (2)
  • - - Manufacturers Literature (Motorola Datasheet 68P65110A80)
  • Author
  • Model page created by John Kusching. See "Data change" for further contributors.
