Wireless Record Player 23RCW
Motorola Inc. (ex Galvin Mfg.Co. Chicago); Schaumburg (IL)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Motorola Inc. (ex Galvin Mfg.Co. Chicago); Schaumburg (IL)
- Year
- 1940/1941
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 48717

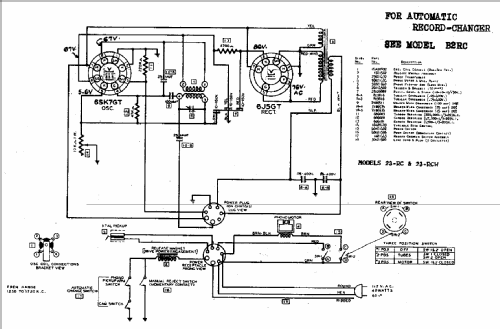

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 2
- Wave bands
- - without
- Details
- Changer (Record changer)
- Power type and voltage
- Alternating Current supply (AC) / 117 Volt
- Material
- Wooden case
- from Radiomuseum.org
- Model: Wireless Record Player 23RCW - Motorola Inc. ex Galvin Mfg.Co
- Shape
- Tablemodel, Box - most often with Lid (NOT slant panel).
- Dimensions (WHD)
- 16 x 8.25 x 14.25 inch / 406 x 210 x 362 mm
- Notes
-
Freq. Range 1250 to 1720 Kc
This unit uses the B2RC record changer.
- External source of data
- Ernst Erb
- Circuit diagram reference

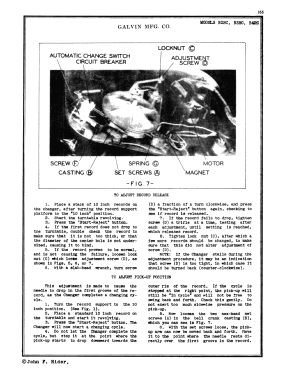

- Rider's Perpetual, Volume 12 = ca. 1941 and before
- Literature/Schematics (3)
- Motorola Folder H-201, for 1941.
