- Country
- United States of America (USA)
- Manufacturer / Brand
- Motorola Inc. (ex Galvin Mfg.Co. Chicago); Schaumburg (IL)
- Year
- 1956 ??
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 205600
Data taken from Motorola datasheet

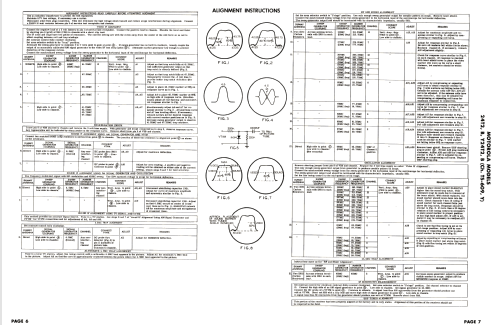

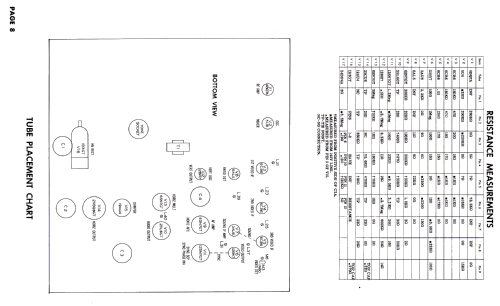

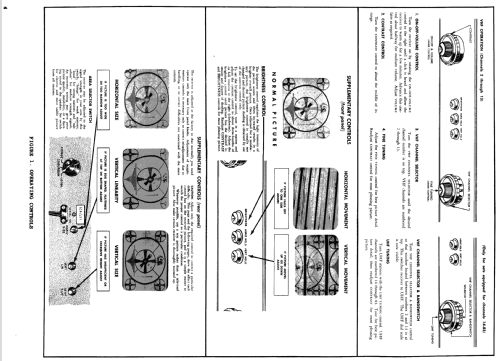

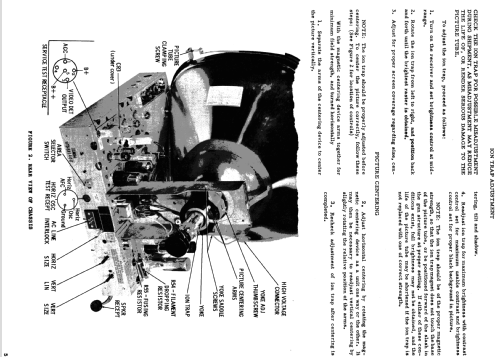

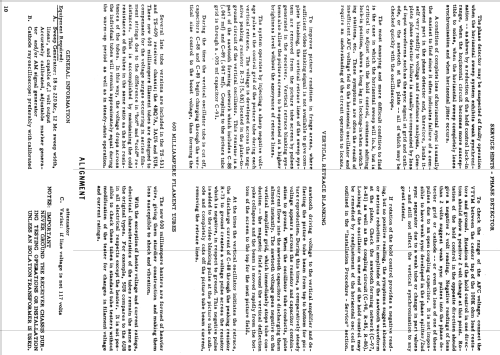

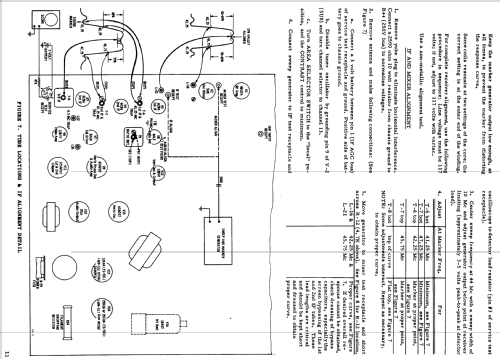

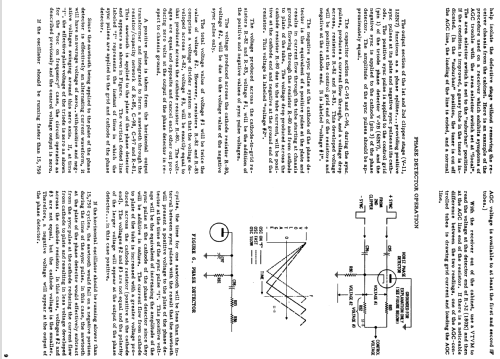

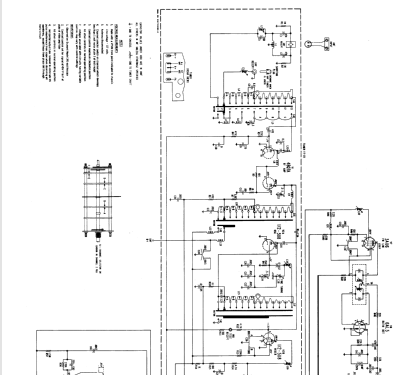

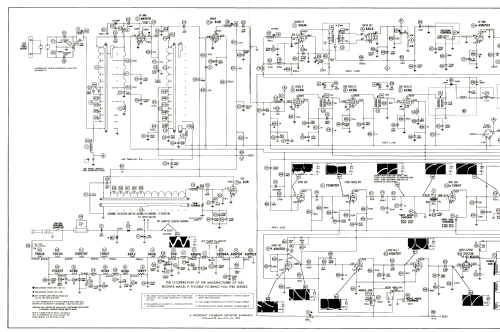

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 17
- Valves / Tubes
- 4BQ7A 5U8 6CB6 6CB6 6CB6 12BY7 3AU6 6AL5 6SN7GT 25L6 12SN7GT 12BH7 6SN7GT 25CU6 12AX4 1B3GT 24DP4A
- Main principle
- Superhet with RF-stage
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 inch = 15.2 cm
- Material
- Wooden case
- from Radiomuseum.org
- Model: 24T2B TS-609 - Motorola Inc. ex Galvin Mfg.Co
- Shape
- Tablemodel, with any shape - general.
- Notes
-
Motorola model 24T2B is a 21” b/w TV with US standard VHF tuner channels 2 thru 13.
Equipped with chassis TS-609, VHF tuner 1U735114 and picture tube 24DP4A. Red-brown mahogany, masonite. Limed oak, masonite.
- Source of data
- - - Manufacturers Literature
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Set 302 Folder 7 dated 1-56)
- Author
- Model page created by John Kusching. See "Data change" for further contributors.
