• Country
• United States of America (USA)

• Manufacturer / Brand
• Motorola Inc. (ex Galvin Mfg.Co. Chicago); Schaumburg (IL)

• Year
• 1959

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 72152

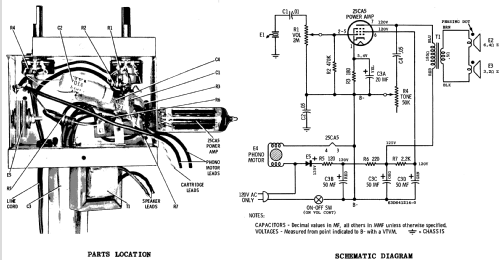

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 1

• Valves / Tubes
• 25CA5

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Rec.Player+Audio.Amp+LS

• Power type and voltage
• Alternating Current supply (AC) / 120 Volt

• Loudspeaker
• 2 Loudspeakers

• from Radiomuseum.org
• Model: 2F12N Ch= HS-667 - Motorola Inc. ex Galvin Mfg.Co

• Shape
• Tablemodel, Box - most often with Lid (NOT slant panel).

• Notes

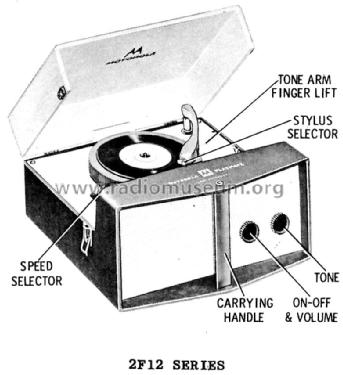

• The Motorola Model 2F12N is an AC operated 1 Tube Phono Amplifier with 4 Speed Manual Record Changer. Color = Brown. This model has two PM speakers, a 5" speaker and a 4" speaker.

• Source of data
• Beitman Radio Diagrams, Vol. 19, 1959

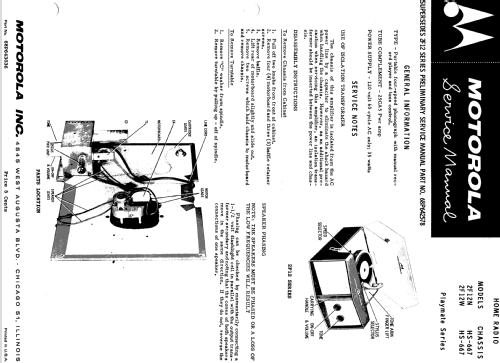

• Literature/Schematics (1)
• - - Manufacturers Literature

• Author
• Model page created by Hinrich Grensemann † 15.5.16. See "Data change" for further contributors.
