• Country
• United States of America (USA)

• Manufacturer / Brand
• Motorola Inc. (ex Galvin Mfg.Co. Chicago); Schaumburg (IL)

• Year
• 1939/1940

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 279676

• Number of Tubes
• 4

• Valves / Tubes
• 1A7G 1N5G 1H5G 1Q5G

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Dry Batteries / 1.5 and 90 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 inch = 15.2 cm

• Material
• Wooden case

• from Radiomuseum.org

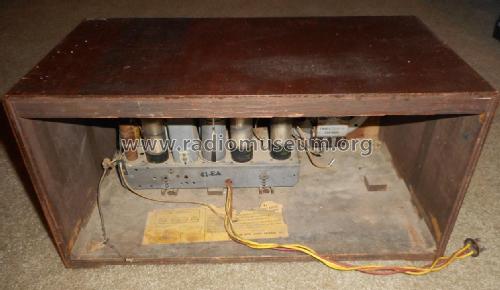

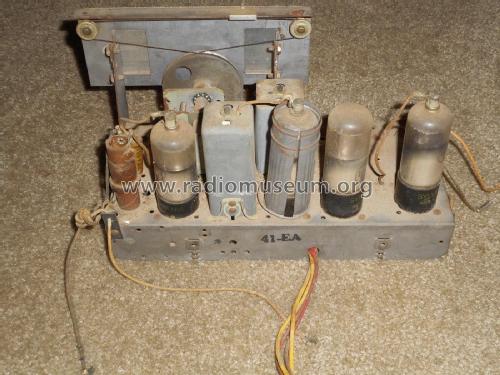

• Model: 41-EA - Motorola Inc. ex Galvin Mfg.Co

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 17.5 x 9 x 9 inch / 445 x 229 x 229 mm

• Literature/Schematics (1)
• Rider's Perpetual, Volume 11 = ca. 1940 and before (Motorola Section, page 11-12)

• Author
• Model page created by Clayton Katz. See "Data change" for further contributors.
