• Country
• United States of America (USA)

• Manufacturer / Brand
• Motorola Inc. (ex Galvin Mfg.Co. Chicago); Schaumburg (IL)

• Year
• 1936

• Category
• Car Radio, perhaps also + sound player/recorder

• Radiomuseum.org ID
• 48817

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 78 6A7 78 75 41 6Z4 or 84

• Main principle
• Superhet with RF-stage; ZF/IF 262 kHz

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Storage Battery for all (e.g. for car radios and amateur radios) / 6 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Metal case

• from Radiomuseum.org
• Model: 50 - Motorola Inc. ex Galvin Mfg.Co

• Shape
• Chassis only or for «building in»

• Notes
• Vibrator for +B.

• Price in first year of sale
• 39.95 USD

• External source of data
• Ernst Erb

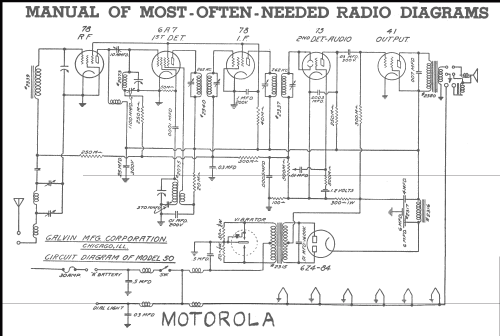

• Circuit diagram reference
• Rider's Perpetual, Volume 7 = 1936 and before
